Zephyr Enterprise

Prerequisites

User privileges

• Create one user in Zephyr Enterprise that is dedicated to OpsHub Integration Manager. This user should not perform any other action from Zephyr Enterprise’s user interface. This user is referred to as an 'Integration User' in the documentation.

• For this integration user to perform operations in Zephyr Enterprise, various permissions are required, as outlined in the Required Permissions section.

Supported Entities

The following entities are supported for synchronization between Zephyr Enterprise and other systems:

• Folder

• Phase

• Test Case

• Test Execution

System Configuration

Before you continue with the integration, you must first configure the Zephyr Enterprise system in OpsHub Integration Manager.

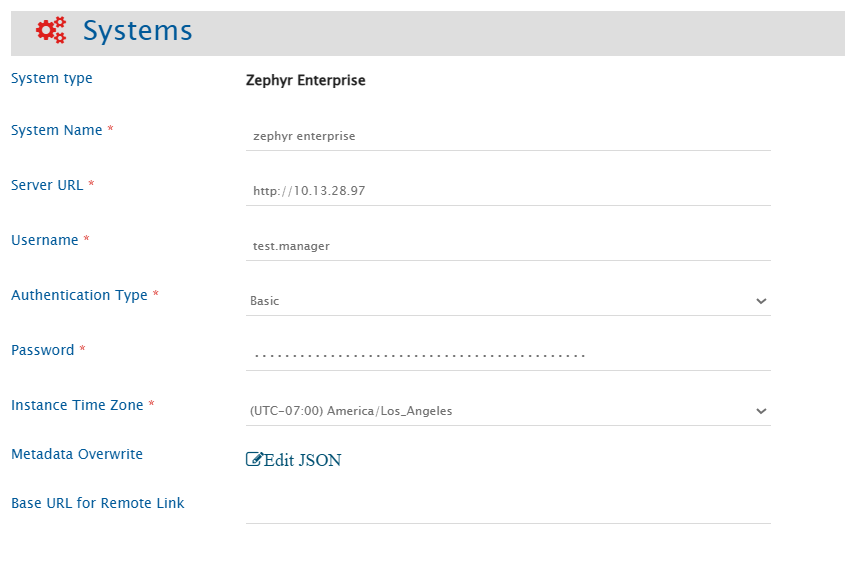

Refer to System Configuration for a steps on how to configure the system. Refer to the screenshot below:

Zephyr Enterprise System Form Details

Field Name	When is the field visible	Description
System Name	Always	Provide a unique name for the Zephyr Enterprise system.
Server URL	Always	Provide Server URL of the Zephyr Enterprise instance. This URL will be used for communicating with Zephyr Enterprise system API. The format of the URL would be - http://[Server host], e.g. - http://127.0.0.1
Username	Always	Provide the username of the Zephyr Enterprise user dedicated to OpsHub Integration Manager. This user must not be used for any operations from Zephyr Enterprise’s user interface and must have the required permission to access the data as per OpsHub Integration Manager product documentation
Authentication Type	Always	Provide the authentication type to connect to the Zephyr Enterprise instance. Supported options are Basic and API Token.
Password	Only when Authentication Type is Basic	Provide the password for the user given in the "Username" field.
API Token	Only when Authentication Type is API Token	Provide the API token generated in Zephyr Enterprise for the user given in the Username field. Refer to Generate API Token in the Appendix for details.
Instance Time Zone	Always	Provide the time zone of the host machine where Zephyr Enterprise application is installed.
Metadata Overwrite	Always	Enable or disable the usage of private API. Refer to the Understanding Metadata JSON Input section for details on format and JSON structure.
Base URL for Remote Link	Always	Provide a different instance URL of the Zephyr Enterprise instance. This URL will be used for generating the Remote Link. Note: If "Base URL for Remote Link" is empty, it will use default instance URL to generate remote link if configured on integration.

Understanding Metadata JSON Input

Controlling Attachment Download via Private API

By default, OpsHub Integration Manager downloads attachments from Zephyr Enterprise using the private API. This behavior is enabled even if the Metadata Overwrite field is left empty or an empty JSON object ({}) is provided.

To disable private API usage for attachment downloads, explicitly set the disableReadAttachments flag to true in the JSON:

{
  "entities": [
     {
         "internalName": "testcase",
         "systemSpecific": {
            "disableReadAttachments": true
         }
     }
  ]
}

Mapping Configuration

Map the fields between Zephyr Enterprise and the other system to be integrated to ensure that data between both systems synchronizes correctly.

Refer to Mapping Configuration for steps on configuring field mappings.

Folder Entity Field Configuration

• Due to API limitations, Description field must not exceed 1024 characters. If mapped, truncate the value to 1024 characters using advanced XSLT to prevent processing failures.

Phase Entity Field Configuration

• Due to API limitations, Description field must not exceed 1024 characters. If mapped, truncate the value to 1024 characters using advanced XSLT to prevent processing failures.

• Phase creation and updates depend on Release and Cycle context:

  • OH_Release is used to check or create the release.

  • OH_Cycle is used to check or create the cycle within the release.

  • The following date validations are enforced:

    • Phase Start Date ≥ Cycle Start Date (OH_CycleStartDate)

    • Phase End Date ≤ Cycle End Date (OH_CycleEndDate)

    • Cycle Start Date ≥ Release Start Date (OH_ReleaseStartDate)

    • Cycle End Date ≤ Release End Date (OH_ReleaseEndDate) (if provided)

Tags Field Configuration

• In Zephyr Enterprise, tags cannot contain spaces. Any space character is treated as a delimiter, meaning it splits a single value into multiple tags.

  For Example: If the API value is "tag1 tag2", Zephyr Enterprise interprets this as two separate tags: tag1 and tag2.

• When Zephyr Enterprise is the target system, and the source system (e.g., tag or label fields) allows spaces within a single value, those spaces must be handled during transformation. Specifically, spaces should be replaced with a supported delimiter such as an underscore (_) to preserve the intended single tag.

  For Example:

  • Source system value: "Test Case"

  • Without transformation → Stored in Zephyr Enterprise as: Test, Case

  • With transformation → Stored as: Test_Case

• If customization is implemented using advanced XSLT, ensure that the same transformation logic is also applied in the reverse direction (from Zephyr Enterprise back to the source system), especially when the field mapping is bidirectional.

Test Step Field Configuration

• For mapping additional fields for test steps like 'Comments', advance XSLT will be modified. Add the following sample xslt in default xslt to map additional fields:

  Example, Here, field name should be the internal name of comments field in Zephyr Enterprise and the content of this field needs to be included in given field name tag

<additionalFields>
    <fieldName>
        <xsl:value-of select="'zcf_1001'"/>
    </fieldName>
    <zcf_1001>
        <xsl:value-of select="additionalFields/comment"/>
    </zcf_1001>
</additionalFields>

Integration Configuration

Set a time to synchronize data between Zephyr Enterprise and the other system. Define parameters and conditions, if any, for integration. Click Integration Configuration to learn the step-by-step process to configure integration between two systems.

Criteria Configuration & Target Lookup

• OpsHub Integration Manager supports criteria and target lookups for the entity types Test Case and test Execution.

• Zephyr Enterprise Query format will be same as the ZQL (Zephyr Query Language).

• Please refer this link To learn how to form a query in ZQL format.

Criteria samples

Field Type	Criteria Description	Criteria snippet
Lookup	Synchronize all entities having priority set to 'P1'	priority = "P1"
Date	Synchronize all entities created after certain date	createdOn > "01-31-2025 00:00"
Text	Synchronize all entities with Name Demo entity	Name ~ "Demo"
Text and Lookup	Synchronize all entities with Name Demo entity and priority set to 'P3'	name ~ "Demo" and priority = "P3"
Text or Lookup	Synchronize all entities with Name Demo entity or status set to 'IN-PROGRESS'	name ~ "Demo" or priority = "P3"

Known Behavior

• Requirements and Defects links on Test Case and Test Execution are not supported in OpsHub Integration Manager.

• Release, Folder, and Cycle names are case-insensitive in Zephyr Enterprise. Hence, while performing check-and-create operations for these entities, entities with names differing only by case are treated as the same entity and will not be created again. Example:

  • If a Release named Release_1 already exists in Zephyr Enterprise, and the incoming data contains release_1 or RELEASE_1, the existing release will be identified and updated, rather than creating a new release.

• Folder path handling using OH_Folder_Path:

  • The separator for folder hierarchy is / (forward slash).

  • Example:

    • "Parent/Child" → Child is created under Parent

    • "Folder1/Folder2/Folder3" → hierarchical structure is created accordingly

• If the Release or Cycle already exists:

  • Start and End dates are updated based on incoming values

  • Once a Release End Date is set, it cannot be modified again. This is an API-level restriction in Zephyr Enterprise.

Limitations

• History-based synchronization is not supported due to API limitations.

• For Zephyr Enterprise as the target system,

  • If the attachment file name contains this file name characters (%,:) or non-ascii characters like (样,品,テ,ス,ト,フ,ァ,イ,ル,★,✓,♛,Ω), then the file will not be added in Zephyr Enterprise. Consequently, the user will encounter a Processing Failure. To avoid this Processing Failure, it is recommended to use the valid file naming conventions.

  • Additionally, if the user still wants to synchronize attachments having this file name characters, then the user needs to add advance mapping for attachments to replace special characters with any of the supported characters. Refer Attachment naming convention related errors

• The following actions requires an additional update on the entity to be synchronized:

  • Bulk updates

  • Cloning of test cases

  • Adding or removing a test step

  • Adding or removing attachments or external links

  • Updating only test step results

  Reason: In Zephyr Enterprise, these operations do not update the entity’s modified timestamp. Since OpsHub Integration Manager relies on this timestamp to detect changes, such updates are not picked up during synchronization unless an additional update is performed on the entity.

• Test step result limitations:

  • Only add operation is supported for:

    • Attachments

    • External links

  • Update and delete operations are not supported at step result level in OpsHub Integration Manager.

Appendix

Required Permissions

In Zephyr Enterprise, users are assigned roles, and those roles define their permissions. The integration user requires two roles to be configured and assigned:

1. An Administration Apps role — grants access to system-level settings.

2. A Project Apps role — grants read and write access to Test Planning, Test Repository, and Test Execution.

The user must also be assigned to the configured project with the configured Project Apps role.

Step 1 — Configure the Administration Apps Role

1. Navigate to the Administration section in Zephyr Enterprise.

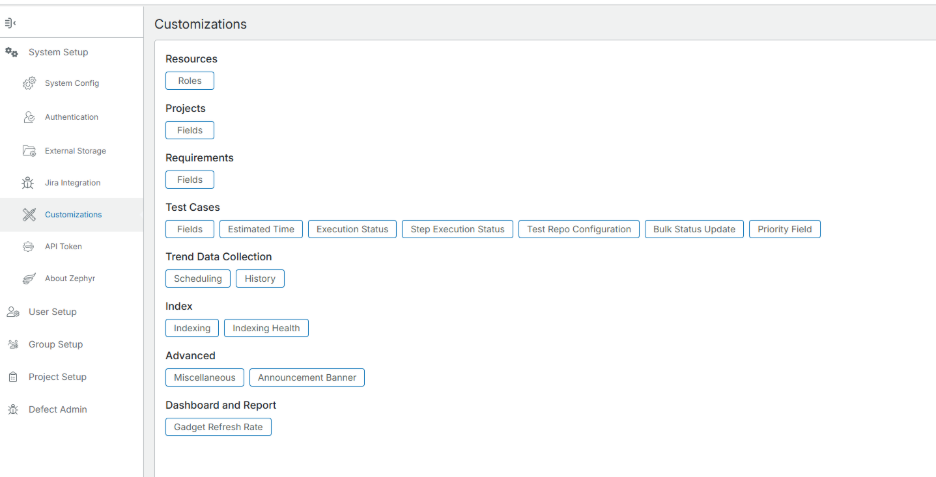

2. Open Customizations → Roles.

1. Create or verify a role using the Administration Apps role template.

2. Under Administration Apps, enable at minimum: System Setup and User Setup.

1. Save the role and assign it to the integration user.

Step 2 — Configure the Project Apps Role

1. In Customizations → Roles, create a role using the Project Apps role template.

2. Enable the following permissions:

Project App	Permissions Required
Test Repository	Read, Create and Edit
Test Planning	Read, Create and Edit
Test Execution	Read, Create and Edit

1. Save the role.

Step 3 — Assign the User to the Project

1. Navigate to Project Setup and open the target project.

2. Open the Assign Users to project with Roles panel.

3. Assign the integration user with the Project Apps role, you have configured in step 2.

4. Save the assignment.

Generate API Token

To generate an API token in Zephyr Enterprise for the integration user:

1. Navigate to the Administration section in Zephyr Enterprise.

2. Under System Setup, click on API Token.

1. Click Create API Token, then copy and save the generated token.
