Using the Dashboard

The OIM dashboard gives a quick view of integrations configured in OpsHub Integration Manager. Users can check overall health of integrations and know if integrations are working fine or have any failures. Users can navigate directly to integrations, systems, and failures from the dashboard.

Here is a video on how to use the dashboard in OIM:

Graphical View

Login into OpsHub Integration Manager.
Dashboard will appear on home page.
Click on at top right corner of dashboard to rotate graphical representation of integration.

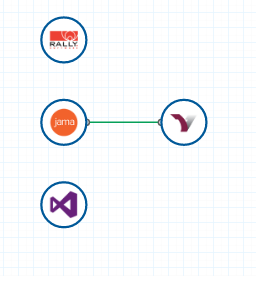

Node: Represents system created in OpsHub Integration Manager.

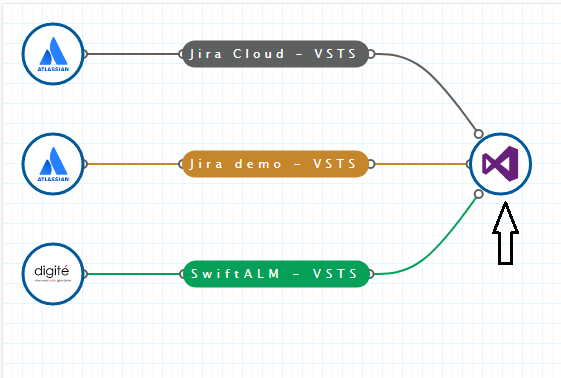

Branch: Represents that two nodes are connected through integration. Click on branch to view integration in read-only mode. Color of branch depicts status of integration.
- Green: Integration is active.
- Gray: Integration is inactive.
- Red: Job failure in integration.
- Orange: Processing failures in integration.
- Click on to view integration details from dashboard.

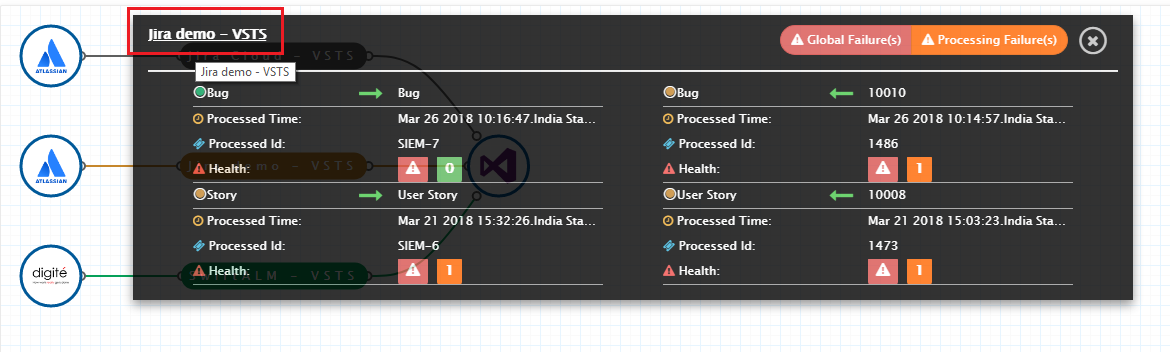

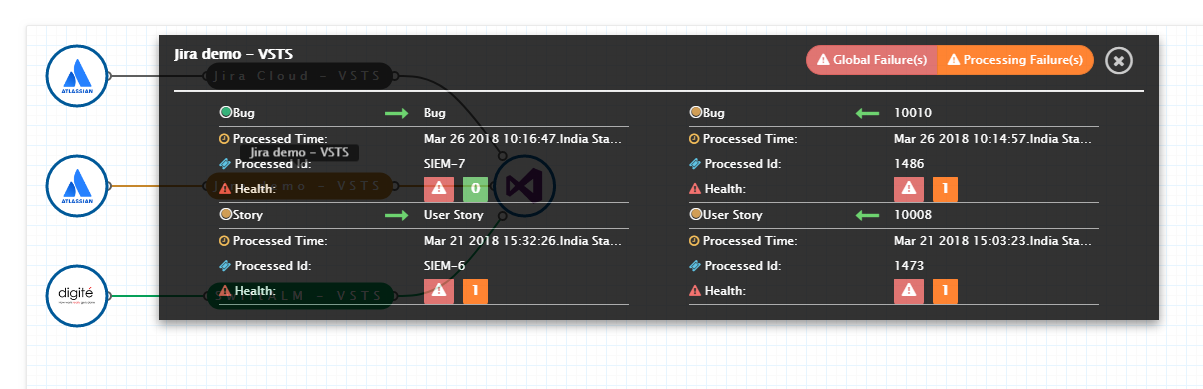

In integration details window, the following information is shown:

Entity type(s) integrated.
Flow of integration (Uni-directional or Bi-directional) for each entity type.
For each flow:
- Last processed time: Last time when integration was executed.
- Last processed entity ID: Last entity processed by integration.

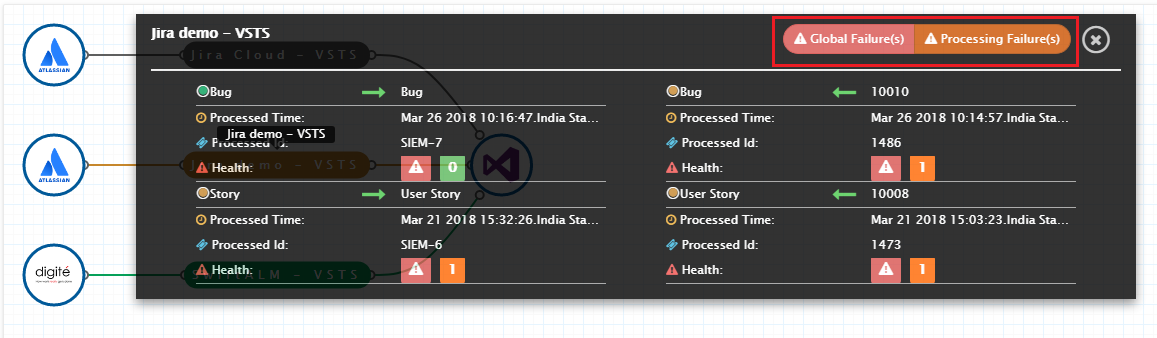

- Health: Shows failures, if any, logged in integration.

Note : Graph gives complete view of all integrations across folders.

Filtering the Dashboard by Various Functions

Users can filter the integrations according to the system and integration status.

Click the funnel icon to view the filter options.

Select the systems and click Filter button. All the integrations that use the selected systems will be displayed.
The available options for integration status are: All, Active, Inactive, and In error. Select one and click Filter.
You can try combinations — for example: set Jira as a system filter and Active as an integration status filter to view all active Jira integrations.
