# Integration Sync Logs

## Overview

* Sync log helps to view logs for tracking activities while integration is running. Usually, logs are helpful when any failure or unusual behavior is detected in integration.
* Sync log can store logs in 5 different levels. Logs will capture information based on the logging level set in the Sync log. Each integration has a separate Integration Sync Log.

## How to navigate to the Integration Sync Logs

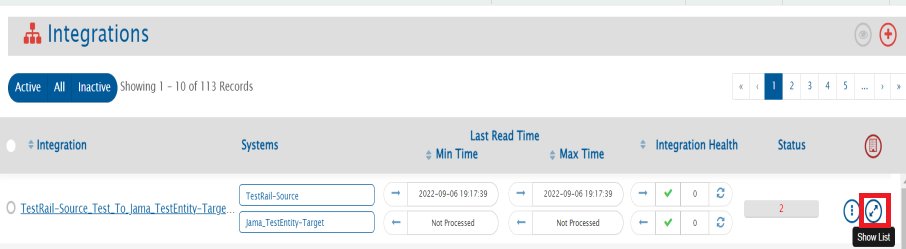

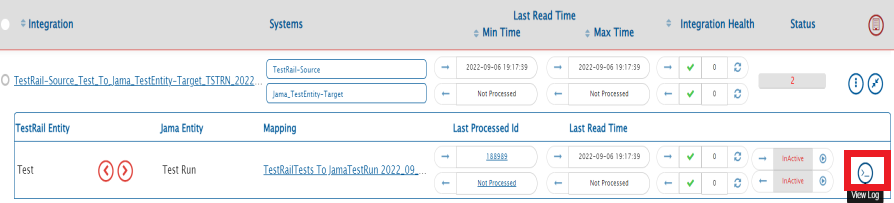

To view the logs for any integration, navigate to integration and click the **Show List** button. From the list, click the **View Log** button.

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-19c93d49f01958a6f631ed8494fb1e23ef77219f%2FSynclog1.png?alt=media" alt=""></div>

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-02956a8f3a93f328fc770723e57b202330fed6df%2FSynclog1a.png?alt=media" alt=""></div>

## Settings

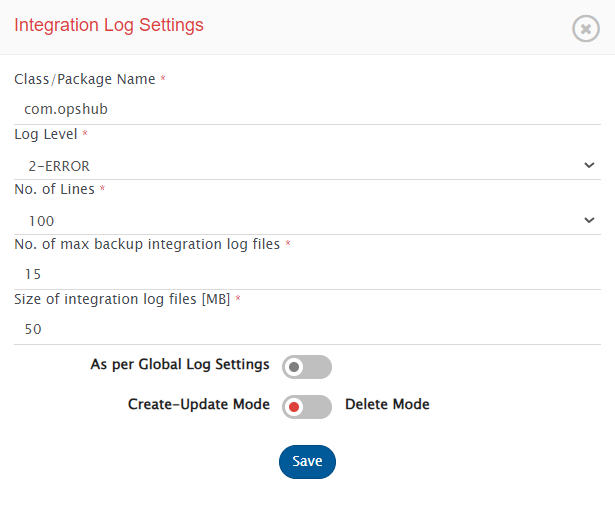

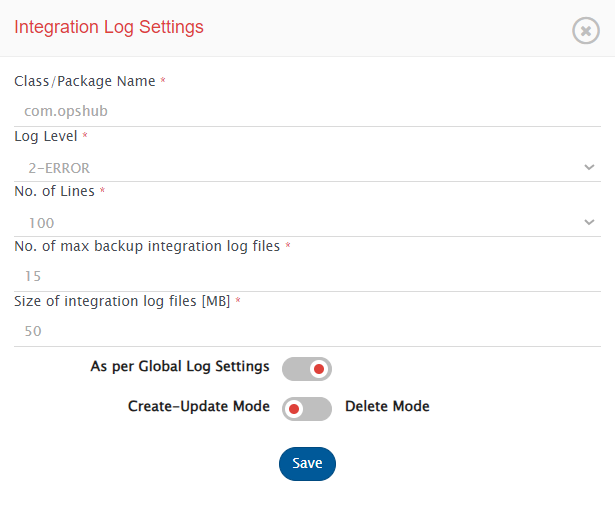

* Click on the Setting button on the Sync log window to configure log settings as mentioned below:

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-f0fd87b4574f68338bdc48f64b735b87c43892ae%2FSynclog10.png?alt=media" alt=""></div>

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-2e9be28ace388ee904a0ef3a50e2734569e1ddd8%2FSynclog11.png?alt=media" alt=""></div>

* **Class/Package Name:** The name of the package or class for which logs need to be monitored. To monitor the logs within the 'com.opshub', package 'com.opshub' should be entered here.
* **Log Level:** Represents the logging level which determines the amount of information recorded in the log files. By default, only Error logged \[Level 2:Error] in <code class="expression">space.vars.SITENAME</code> are logged in logs. Other available levels are as below. The coverage of information increases in ascending order from logging level 1 to 6.
  * 1-FATAL: Log minimum amount of data, not sufficient for tracking integrations.
  * 2-ERROR: Log errors of <code class="expression">space.vars.SITENAME</code> only.
  * 3-WARN: Log errors and warning of <code class="expression">space.vars.SITENAME</code> only.
  * 4-INFO: Log info, errors, and warning of <code class="expression">space.vars.SITENAME</code> only.
  * 5-Debug: Log a considerable amount of data for debugging purpose.
  * 6-TRACE: Log a detailed maximum amount of data. It is useful for tracking integration in depth. However, it also increases the log sizes and creates multiple log files due amount of information logged.
* **No. of Lines:** Number of lines of logs to be displayed on the log viewer screen of the UI.
* **No. of max backup log files:** Maximum number of backup files to store excluding the current log file used by the integration.
* **Size of log file \[MB]:** Maximum size (in MB) that an integration log file can have before a new backup log file is created.
* **As per Global Log Settings:** Use the toggle button to determine if sync log settings should follow global level Integration log setting or override that setting.
* **Create-Update Delete Mode:** Use the toggle button to set integration sync log settings that the user would like to view for each mode.

## Behaviour of integration Sync Logs

* **As per Global Log Settings Enabling:** Global level Integration Log Setting will be used for Create-Update/Delete mode, and the form is non-editable.
* **As per Global Log Settings Disabling:** The user-configured Integration Log Setting of Class/Package name, Log level, number of lines, and the maximum number of backup log files for the Create-Update/Delete mode of that integration will be used.

## Refresh log

**Refresh log:** Button on the top of the window can be used to refresh the logs to show the latest logged data.

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-1dd51c798723ab14285a1e3e6f8da80480f99ba0%2FSynclog3.png?alt=media" alt=""></div>

**Auto Refresh:** Toggle button which can be set **on** to automatically refresh logs every few seconds (2-3 seconds).

## Create-Update Delete Mode

**Create-Update Delete Mode:** Toggle button is used to set the **type of synchronization** logs that the user would like to view.

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-277ee3148cbd38a0818cb90301f827dba2dd2c4c%2FSynclog5.png?alt=media" alt=""></div>

## Forward Backward Direction

**Forward Backward:** The Toggle button is used to set the direction of the integration the user would like to view.

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-be1f0ac3f62d730f3b79b901d99daff64c0eed2c%2FSynclog6.png?alt=media" alt=""></div>

## Export logs

* Click the Export Logs button to export logs as a zip file. Here, the user can download the logs and analyze the logging for debugging purpose.

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-a83407c247d82bd470642265af447422153e0964%2FSynclog7.png?alt=media" alt=""></div>

## Word Wrap

<div align="center"><img src="https://818964384-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FK5eA7qMDBFu0HHHMDehi%2Fuploads%2Fgit-blob-628f137d5b1c83529adcc04e5f8c1dbf9b67c55e%2FSystemlog-wordwrap.png?alt=media" alt=""></div>

Click on Word Wrap to enable/disable the word wrapping behavior in the log viewer.

* Word wrap is enabled by default.
* When word wrap is enabled, long log entries are wrapped, making them easier to read without horizontal scrolling.
* When word wrap is disabled, log entries remain on a single line, preserving the visual alignment of timestamps and structure. However, horizontal scrolling may be needed.
