# Trac

## Prerequisites

### Trac Configuration

In Trac, we need to install xmlrpc plugin. Then we need to enable that in the `trac.ini` file located in `Trac project/conf` folder.

```
[Components]

tracrpc.* = enable
```

### User Privileges

* Create one user of Trac, dedicated to <code class="expression">space.vars.SITENAME</code>. User should not be used to do any operations from System's User-Interface.
* User must have all privileges to call its web-service and permissions to read, write, and edit the entity.
* Following are the privileges required in Trac for the user of <code class="expression">space.vars.SITENAME</code>.
  * TICKET\_ADMIN
  * XML\_RPC

For privilege management, please refer appendix [User Privileges](#user-privileges).

### Custom Fields Configuration

In Trac, following custom fields are required. For creating custom fields, please refer appendix [Custom Field Configuration](#custom-field-configuration).

| **Name**    | **Type** | **Label Name**  |
| ----------- | -------- | --------------- |
| ohcreatedby | text     | OH\_CREATED\_BY |

## System Configuration

Before you continue to the integration, you must first configure Trac.

Click [System Configuration](https://docs.opshub.com/v7.216/integrate/configure-integrations/system-configuration) to learn the step-by-step process to configure a system.

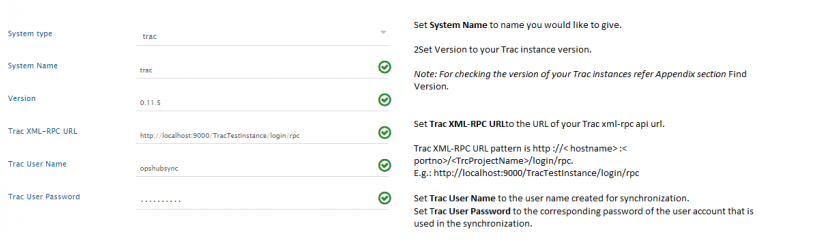

Refer the screenshot given below for reference.

<div align="center"><img src="https://3739347370-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1a8GpUm2lq3lKbytaYjt%2Fuploads%2Fgit-blob-d63abd5df8b2f604e526d5ee9cb8492273f1be98%2FTrac_Image_1a.png?alt=media" alt="" width="1000"></div>

If the system is deployed on HTTPS and a self-signed certificate is used, then you will have to import the SSL Certificate to be able to access the system from <code class="expression">space.vars.SITENAME</code>. Click [Import SSL Certificates](https://docs.opshub.com/v7.216/getting-started/installation/ssl-certificate-configuration) to learn how to import SSL certificate.

## Mapping Configuration

Map the fields between Trac and the other system to be integrated to ensure that the data between both the systems synchronizes correctly.

Click [Mapping Configuration](https://docs.opshub.com/v7.216/integrate/configure-integrations/mapping-configuration) to learn the step-by-step process to configure mapping between the systems.

## Integration Configuration

Set a time to synchronize data between Trac and the other system to be integrated. Also, define parameters and conditions, if any, for integration.

Click [Integration Configuration](https://docs.opshub.com/v7.216/integrate/configure-integrations/integration-configuration) to learn the step-by-step process to configure integration between two systems.

## Criteria Configuration

### Query

Query in Track system is valid for any filed available in trac as follows:\
`<filedname(internal name)><operator(!=,=)><filedvalue(displayvalue)>`

Please note, all the query string should be in small letters.

### Sample Query

```
status!=closed or status!=open
priority!=must or priority!=major
reporter=xyz
```

## Appendix

### User Privileges

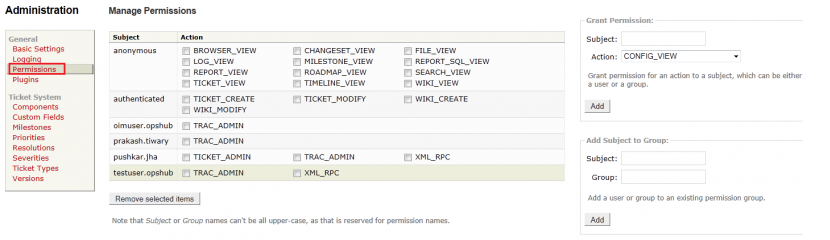

* In **Admin** tab, select **Permission** from the left panel.
* In **Subject** of **Grant Permission** option named the resource to which you want to give privilege. For Example, 'oimuser'.
* In **Action** of **Grant Permission** options, select the permission you want to give to the selected Subject. For Example, 'XML\_RPC'.
* Click **Add** to give the permission.

<div align="center"><img src="https://3739347370-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1a8GpUm2lq3lKbytaYjt%2Fuploads%2Fgit-blob-b4ce20d52179a3b54fce2b9426e902212a223551%2FTrac_Image_2a.png?alt=media" alt="" width="1000"></div>

### Custom Field Configuration

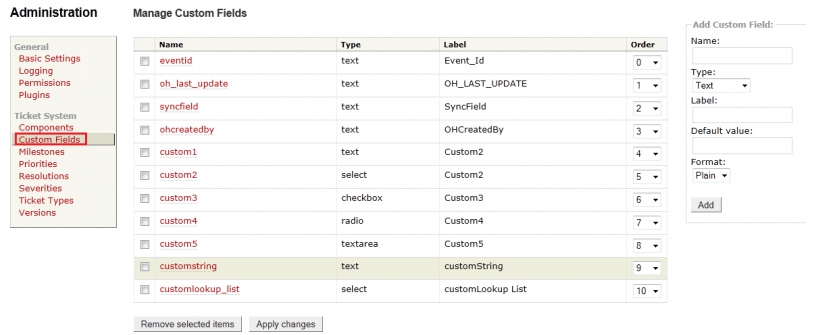

* If "**traccustomfieldadmin**" plug-in is installed, then the custom field can be added by the Trac UI itself.
* Give the name, type, label name and the default value for custom field and click **"Add"** to create the custom field.
* If "**traccustomfieldadmin**" plug-in is installed, we need to enable it from `trac.ini` file located in `Trac Project/conf` folder as follows:

  ```
  [components]
  customfieldadmin.* = enabled
  ```

  For adding the custom field give the **Name, Type, Label** and **Default value** and then click on **Add**.
* If "**traccustomfieldadmin**" plug-in is not installed, we can configure the `trac.ini` file located in `Trac Project/conf` directory for adding the custom filed.\
  Syntax of adding the custom field is as follows:

  ```
  [ticket-custom]
  customField = text
  customField.format = plain
  customField.label = SyncField
  customField.options =
  customField.order = 2
  customField.value =
  ```

<div align="center"><img src="https://3739347370-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1a8GpUm2lq3lKbytaYjt%2Fuploads%2Fgit-blob-34bae07bb4c3818a57746d64aa02eab09932c537%2FTrac_Image_3a.png?alt=media" alt="" width="1000"></div>

### Version

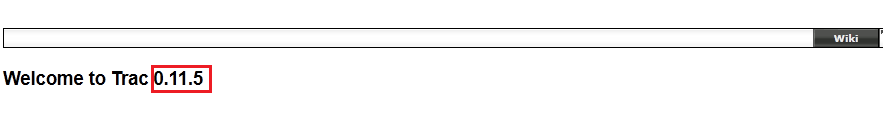

* Open the tracurl : `http://<hostname>:<portno>/<TrcProjectName>`
* Click on Wiki tab.

<div align="center"><img src="https://3739347370-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1a8GpUm2lq3lKbytaYjt%2Fuploads%2Fgit-blob-21f08426f66311632ed1d85c4cfc14436bd5da3b%2FTrac_Image_4.png?alt=media" alt=""></div>

### Custom Field Internal Name

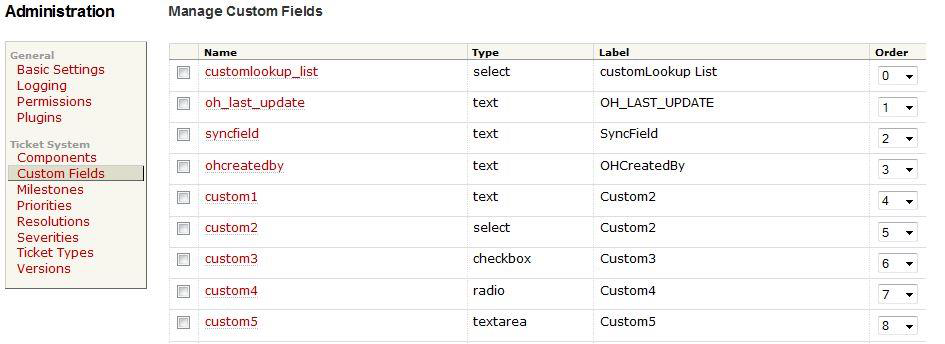

* Log in into Trac with the administrator user.
* Navigate to the **Admin** menu on the top of the page.
* From the page displayed, click on **Custom Field** link on the left menu. It will show list of custom fields if any configured with a link to **Add a new custom field** at the end.
* **Edit Custom Field** shows custom field **Internal Name**.

<div align="center"><img src="https://3739347370-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1a8GpUm2lq3lKbytaYjt%2Fuploads%2Fgit-blob-008a1d64438031129edd71885e8cbd189204b383%2FTrac_Image_5.png?alt=media" alt="" width="1000"></div>
