Aha
Prerequisites
User privileges
Create one user in Aha! that is dedicated for OpsHub Integration Manager. This user shouldn't perform any other action from Aha!'s user interface. This user is referred as 'Integration User' in the document.
Please refer to Add User section to create a user in Aha!.
To synchronize entities to and from any systems to Aha!, Integration User must have Contributor permission at project level and Customizations role [which needs be selected from project's Administrator roles]. Refer to Grant permissions to Aha! user section for step-wise details on how to grant permissions to a Aha! user.
API Rate Limiting
Due to Aha! rate limit issues, for more details, refer to the API Rate Limitation in Aha! section, it is recommended to use the Fetch Mapped Data Only feature (available as an OpsHub Integration Manager add-on) to optimize the API calls. Contact your sales or support representative to enable it.
System Configuration
As you kickstart with the integration, you must first configure Aha! system in OpsHub Integration Manager.
Click System Configuration to learn the step-by-step process to configure a system.

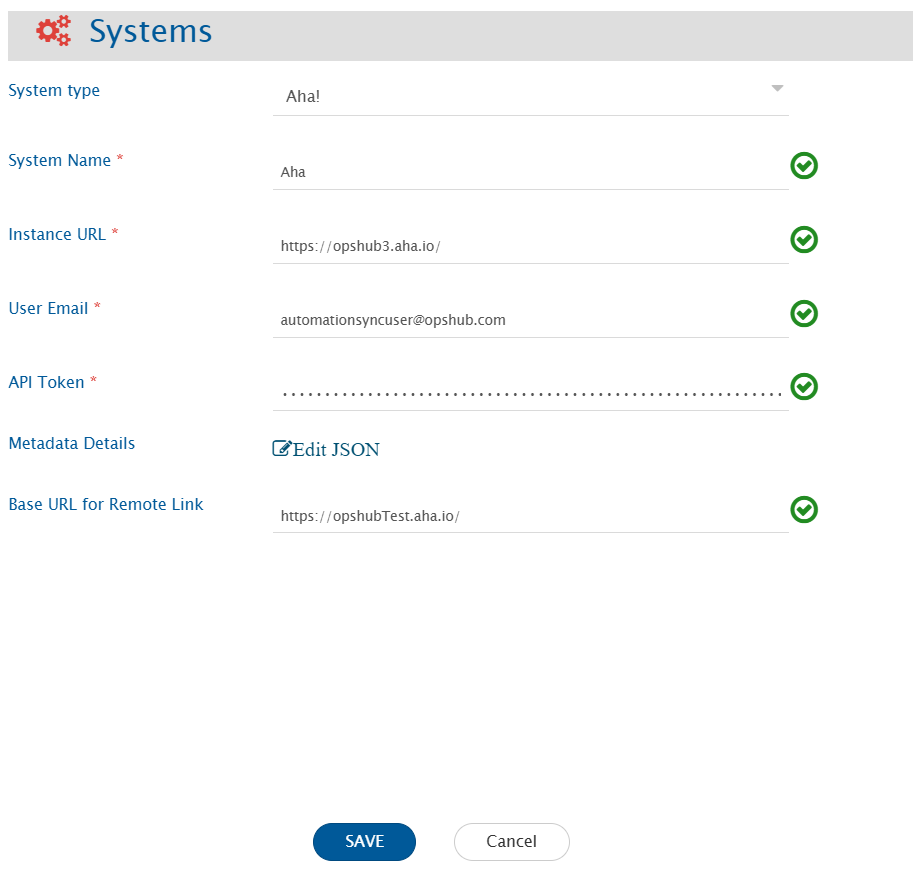

Refer to the following screenshot for reference:
Aha! System form details
Field Name
Description
System Name
Provide the system's name
Instance URL
Provide Instance URL of the Aha! instance. This URL will be used for communicating to Aha! API. The format of the URL is: https:// .aha.io Example: https://opshub-inc.aha.io
User Email
Provide the email Id of a dedicated user who will be used for communicating with Aha! API. This user should have the required privileges to use the Aha! API. For more details on the required privileges, please refer to User privileges section.
API Token
Provide the bearer API Token generated in Aha! for the user given in "User Email" field. Please refer to Steps for generating the API token section for generating the API token.
Metadata Details
The user can edit entity types based on his/her Aha! instance details for system metadata. For the format and guidance related to filling these details in JSON form, please refer to Understanding JSON Input section.
Base URL for Remote Link
Provide different Instance URL of the Aha! instance. This URL is used for generating the Remote Link. E.g., if the Instance URL is https://opshubTest33.aha.io/ or any API node URL, but Remote Link needs to be generated with a different Instance URL such as https://opshubTest.aha.io/. Note : If "Base URL for Remote Link" is empty, it will use Instance/Server URL to generate Remote Link if configured on Integration.
Understanding JSON Input
The entity metadata details can be provided at the time of system configuration in the field 'Metadata details' [in the form of JSON] in the below mentioned use case:
Use case: In Aha!, the entity display name can be changed. Hence, if this is the case at your end, then changes are needed to be performed in the entity display name of JSON input. Below is the example of the JSON input:
Mapping Configuration
Map the fields between Aha! and the other system to be integrated to ensure that the data between both the systems synchronize correctly.
Click Mapping Configuration to learn the step-by-step process to configure mapping between the systems.

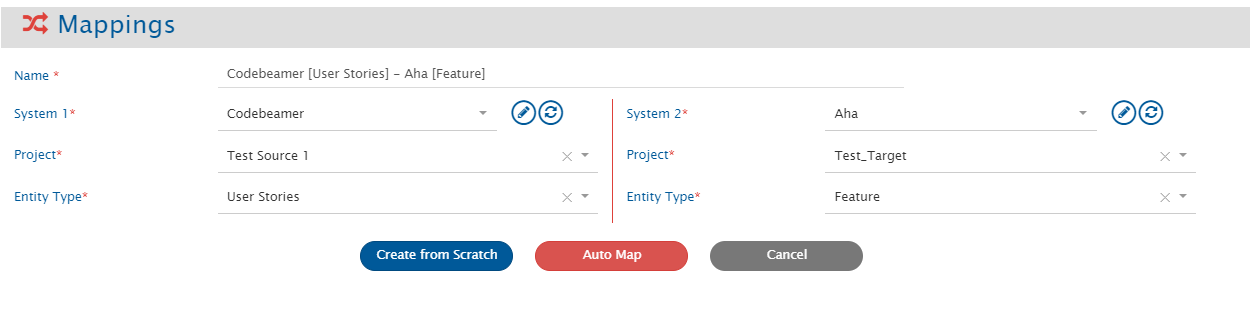

In Aha!, entity type selection in mapping configuration depends on the project/product selection. For more details, please refer to Project Selection section.
Note: In OpsHub Integration Manager, for the sync of Parking lots, the Release entity needs to be seleted at mapping level {as Parking lots are considered as Release by OpsHub Integration Manager }.
Comments Configuration
Aha! as source system:
If comments are mapped in Mapping Configuration, then all the comments will be synchronized to target system. Additionally, the attachments & inline images from the comment will sync to the target system based on its attachment behaviour. For example, if the target conatins the comment with attachment functionality, then attachment will sync to attachment section and the reference to that attachment will be added inside the comment.
Aha! as target system:
If comments are mapped in Mapping Configuration, then comments will be synced to Aha! system. Here, the inline images and attachments will be synced to Aha! description field and reference to those attachements will be added in the comment.
Attachments Configuration
Each Rich Text type field supports attchements in Aha!.
Aha! as source system:
Attachments from all rich text and attachment type fields will sync to the target system.
Aha! as target system:

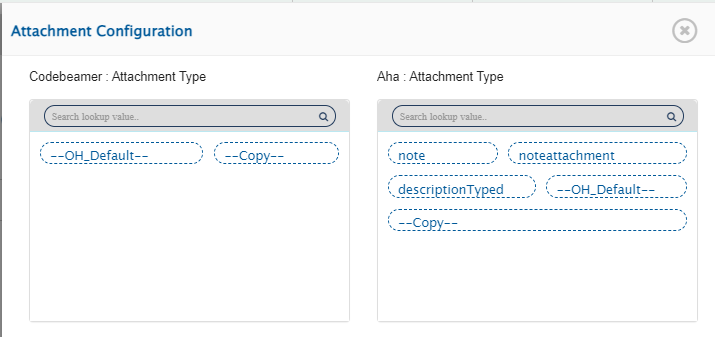

Attachment mapping can be configured to decide the field of Aha! to which the attachment needs to be synced.
If only attachment mapping toggle is enabled but the attachment type mapping is not configured, then attachment will sync to description field of Aha! as a part of default attachment behavior sync.
Relationship Configuration
In Aha!, Record links and Reference fields will be supported as relationships.
Mandatory Links
For Feature and Epic type of entities, the Release is a mandatory relationship linkage as feature and epic can only be created inside the release/parking lot.
For Requirement type of entities, Feature is a mandatory relationship linkage as requirements can only be created inside the feature.
For To-do type of entities, the Parent is a mandatory relationship linkage as we support the creation of a to-do entity inside the other entity only. Here, the parent entity can be any other entity.
Reference Fields
Reference fields are the fields that refer to some other Aha! entity we support.

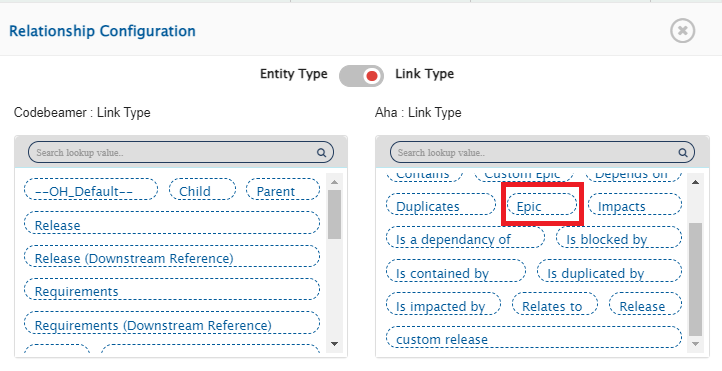

Reference fields [System/Custom fields] will be synchronized through relationships. For references, the names of the Reference fields will be shown in link type mapping of the Relationship Configuration, as shown in the screenshot below:

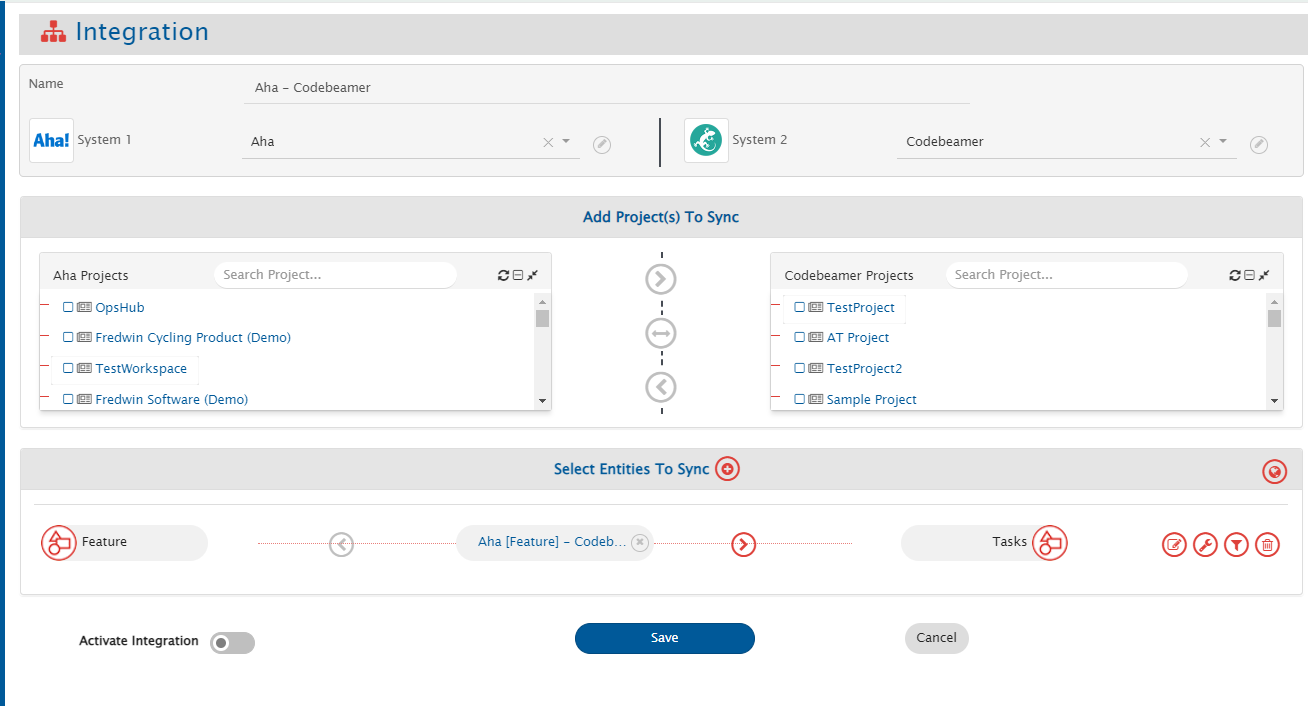

Integration Configuration
Set a time to synchronize data between Aha! and the other system to be integrated. Also, define parameters and conditions (if any) for integration. Refer to Integration Configuration to learn the step-by-step process to configure the integration between two systems. Refer to the screenshot given below:
In Aha!, the entity type selection in integration configuration depends on the project selection. For more details, please refer to Project Selection section.
Criteria Configuration
If the user wants to specify conditions for synchronizing an entity from Aha! as source system to the other system, the criteria must be configured. Navigate to Criteria Configuration section on Integration Configuration page to learn in detail about Criteria Configuration. Set the Query as per Aha! encoded query format. Criteria is only applicable to given four fields. Given below are the sample snippets of how the Aha! queries can be used as criteria query in OpsHub Integration Manager:
Criteria samples:
Field Type
Criteria Description
Criteria snippet
q
Synchronize all entities named as 'test feature'
q=test%20feature
updated_since
Synchronize all entities updated after 10 March 2021
updated_since=2021-03-10T00%3A00%3A00.000Z Format: yyyy-MM-dd'T'HH:mm:ss.SSS'Z'
tag
Synchronize all entities associated with the tag 'need review'
tag=need%20review
assigned_to_user
Synchronize all entities assigned to user 'ABC'
Filter can be applied on User ID or User email. For an example, assigned_to_user=7163902316942030700 /assigned_to_user=email%40opshub.com Here, 7163902316942030700 is the id of the user 'ABC'.
updated_since + name
Synchronize entities named 'test r &d' and updated after 10 Mar 2021
updated _since=2021-03-10T00%3A00%3A00.000Z &q=test%20r%26d
Target LookUp Configuration
Provide Query in Target Search Query field such that it is possible to search the entity in the Aha! as the target system. In the target search query field, the user can provide a placeholder for the source system's field value in the '@'
Go to Search in Target Before Sync section on Integration Configuration page to learn in detail about how to configure Target LookUp.
Overall, Target LookUp Query is similar to Criteria Configuration, except that the value part contains a field name with '@' instead of static value.
Target LookUp query samples:
Field Type
Target lookup usecase
Snippet
q
Target lookup on entity having source entity's id in name field
q='@source _system _id@'
Known Behaviour
From Aha! UI, issue type can be changed for entity. Currently, such conversions will create a new entity in the target and the previous one will be orphaned.
From Aha! UI, the entity can be deleted. However, for Aha! as the source system, the deleted entity will not sync by OpsHub Integration Manager. The corresponding target entity will remain orphan in target system on Aha! entity deletion. Also, Aha! entity deletion is not supported by OpsHub Integration Manager, when Aha! is the target system.
To update the "Progress" field through synchronization, the progress source must be set to "manual" (from Aha! UI or field mapping of OpsHub Integration Manager) due to Aha! API behavior.
Goals and Initiative System fields will be available as lookup fields in the field mapping, even though they are not available in Aha! Develop UI.
The above fields are available in Aha! Develop UI when the Aha! Develop instance is combined with Aha! Roadmap.
Note The above fields will be deprecated in future releases and replaced with link-based support.
Hierarchy sync is not supported. Hence, the synchronization of ranking the requirements and to-dos will not be supported.
Entity Mention is not supported for Goals(read-only supported), Notes and To-Do entities.
Scorecard parameter values require additional configuration in OIM to sync.
Reason: Aha APIs do not provide scorecard parameter details.
Advanced XSLT configuration is required to synchronize complex fields (such as table and worksheet types).
Refer to Configure Advance XSLT For Complex Fields section.
Only read-only synchronization is supported for the following fields
Scorecard fields
Table fields
Worksheet field
Custom choice field
Detailed estimate source for Epic entity
Note: Write support for these fields is planned for future releases.
Project Selection
For Aha! system, users can organize their data at different types of workspaces, i.e., Project, Products or Teams. Different entities can reside in different workspaces, for e.g., the Feature can belong to the Product while Activity can belong to the Project.
API Rate Limitation in Aha!
Aha! has limitation on API access per minute for a single user. Due to this, OpsHub Integration Manager can access Aha! API within a limit. When the limit exceeds, the Aha! API stops responding for certain amount of time, and no API calls can be done by OpsHub Integration Manager during that time until Aha! resets the limit for that user.
Up to 300 requests per minute and 20 requests per second are allowed in Aha!.
To address this issue, wait time (given by Aha! API) will be considered for entity synchronization. Thus, there might be some delay in synchronization in case of API rate limit issue.
Note: To avoid hitting rate limits, do not set the integration schedule to run every minute. Instead, adjust the cache timeout in OpsHub Integration Manager(for example, 24 hours) and the integration schedule interval (for example, 15 minutes in production) to ensure smooth operation without exceeding rate limit
Recommendation: To reduce the number of API calls, consider using the Fetch Mapped Data Only feature, which is available as an additional license add-on. To enable this feature, please contact your sales or support representative.
Known Limitations
Limitations due to the lack of Aha! API:
Audit/History Sync
History is synced for the last 12 months only from current date.
Reason: Aha APIs provide history data limited to the past 12 months.
Reference: Aha Audits API
Some fields support only current value sync (history is not available).
Due to Aha's historical behavior(UI and API limitations): Scorecard parameters, Watchers, Custom brief type field, Actual vote count, Proxy voters and Submission portal details
Due to Aha's API limitations: Custom tables, Tags, Rich text fields, goals/initiatives and Estimate-related fields.
During history synchronization, changes in user fields may be synced as the wrong user in target, if multiple users share the same display name in Aha!.
Example:
User 1 in Aha!: Display Name = X, Email = [email protected].
User 2 in Aha!: Display Name = X, Email = [email protected].
If an update is made to “X” like X -> X in Aha!, the system may sync it to the wrong user in the target system.
Reason: The Aha! end system does not distinguish between users with identical display names through the UI/API.
A 5-minute delay is applied to history based sync
Reason: Aha consolidates audit records within a 5-minute interval. To avoid discrepancies or inconsistencies in history sync, this delay is introduced.
Additional delay depends on polling/scheduling interval:
Total delay = 5 minutes (processing) + configured polling interval.
Example: If polling is set to 5 minutes, creations/updates may reflect after approximately 10 minutes.
Note: To avoid dependency on the delay, you may run sync the current state and sync history separately in a tabular format in target system.
Metadata is not available for the system fields. So, we are providing static metadata in the system itself. Here, the user can change the display name of the entity. User can provide the entity name using the JSON input, and if any user doesn't provide any JSON input, an inbuild entity display name will be considered.
In Aha! Develop instance, for Epic & Feature type of entities, Workspace field is not available for synchronization.
In Aha! Develop instance, for Requirement type of entity, Initial estimate, Detailed estimate & Actual effort fields will not be synced.
State transition is not supported as API doesn't give the information about state transitions.
For synchronizing updates of Proxy votes and Submission portal details fields for Idea entities, an additional field update is required. This is because changes to these fields do not update the entity's last modified time.
Custom Key Result field is treated as a text field due to API unavailability.
Attachment field: If Aha! is the target system and the attachment mapping is configured to use field-type attachments, at least one attachment should be present in the corresponding field.
For Aha! as the target system, the fields below will not unset via OpsHub Integration Manager due to Aha!'s API limitation: Effort, Value, Duration Source, Progress Source, Status, Type, Complete by date (internal), Round date to, Complete by date (external), Presented, and Description.
To-dos present at user level will not synced by OpsHub Integration Manager. To-dos present in other entities can only be synchronized.
Troubleshooting Guide
If you are getting an Internal Server Error with Status Code: 500, then you should retry the failures. There is a limitation of the Aha! API that if we perform updates on entities from same project at the same time, deadlocks occur in their database. It can cause the above-mentioned error.
Appendix
Add User
Login to Aha! using the user with privileges to create a new user.
Navigate to Settings given at the top right corner and go to Account section.

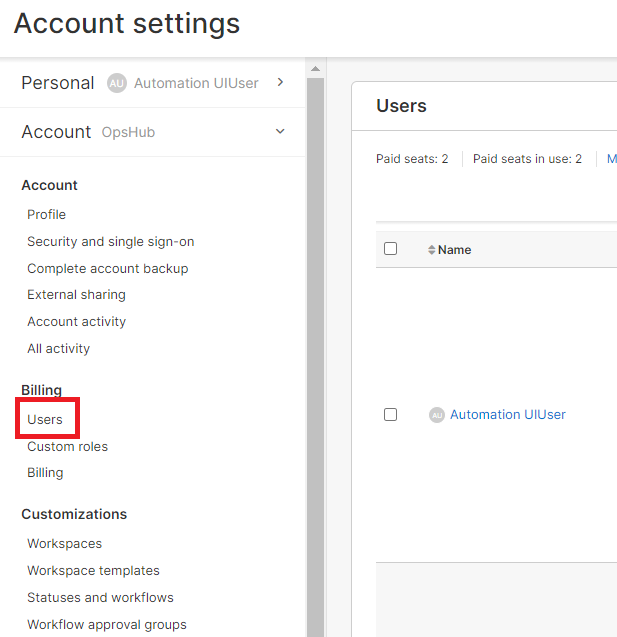

3 . Navigate to Users

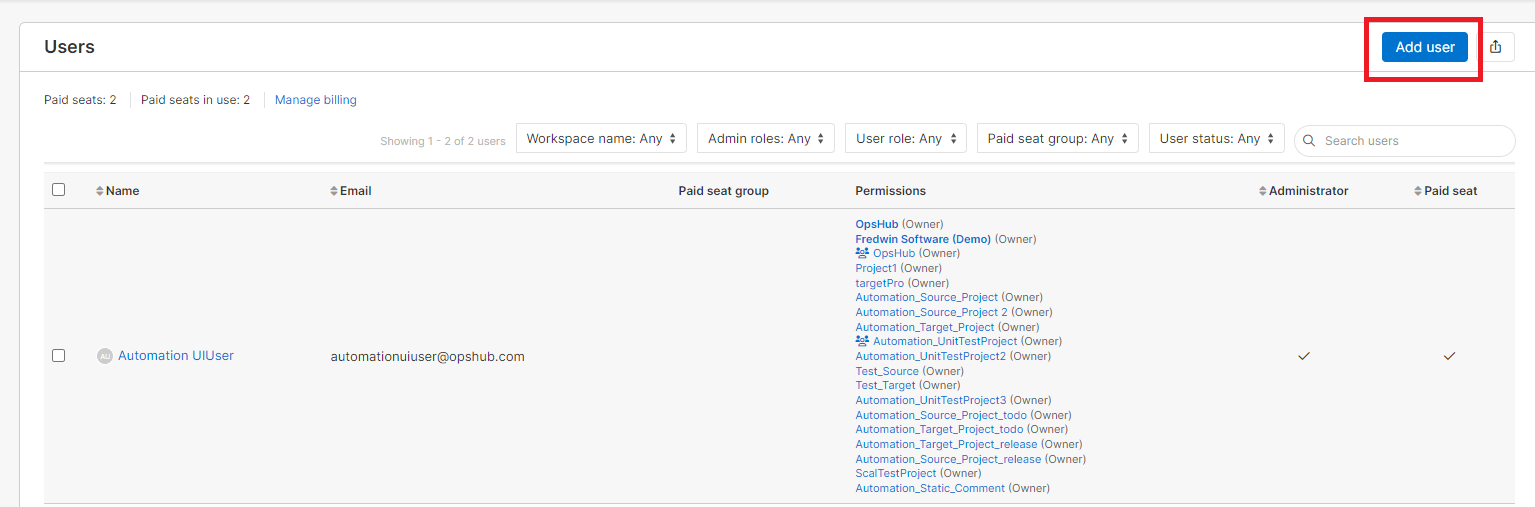

4 . Click on the Add User button given at the top right corner of the users' list.

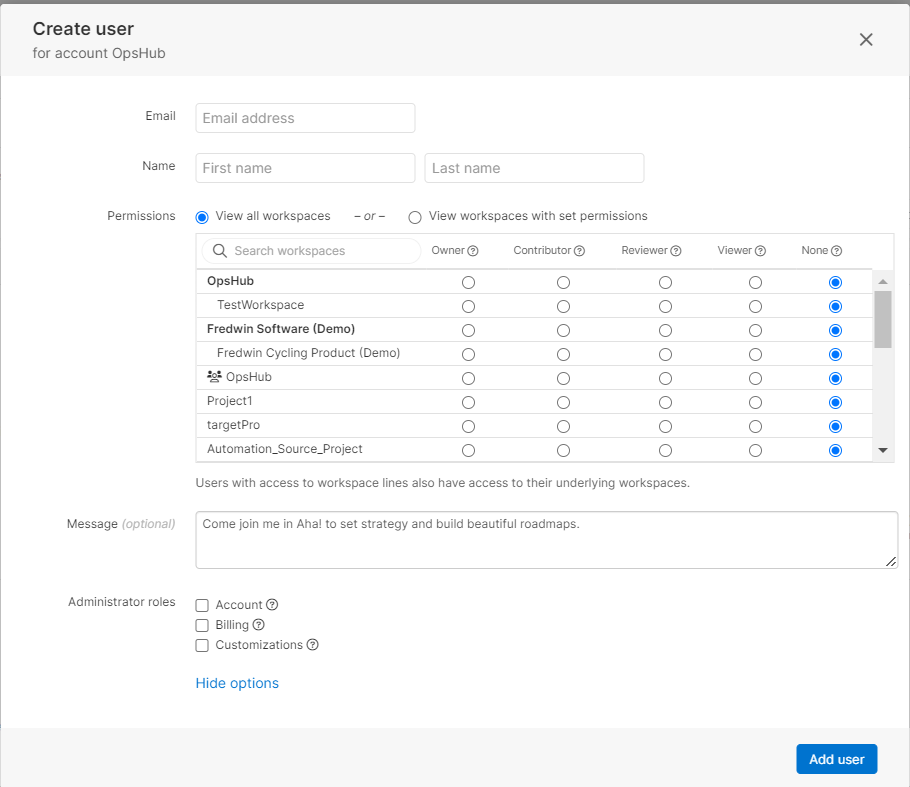

5 . Fill the details regarding the user. For the Administration Role and Permissions for different workspaces, select the roles having permissions mentioned in [User privileges] (#user-privileges) section.
6 . Save changes
Grant permissions to Aha! user
Login to Aha! using the user with privileges to grant permissions to any user.

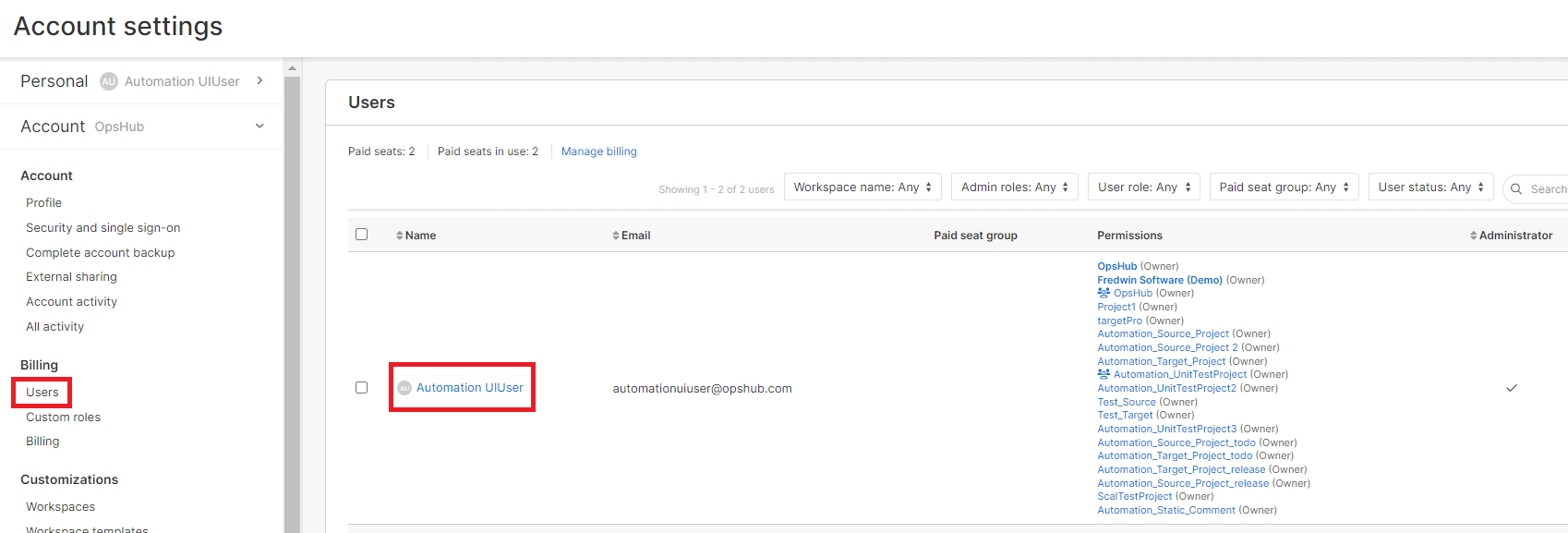

Navigate to Settings and go to Account->Users section.

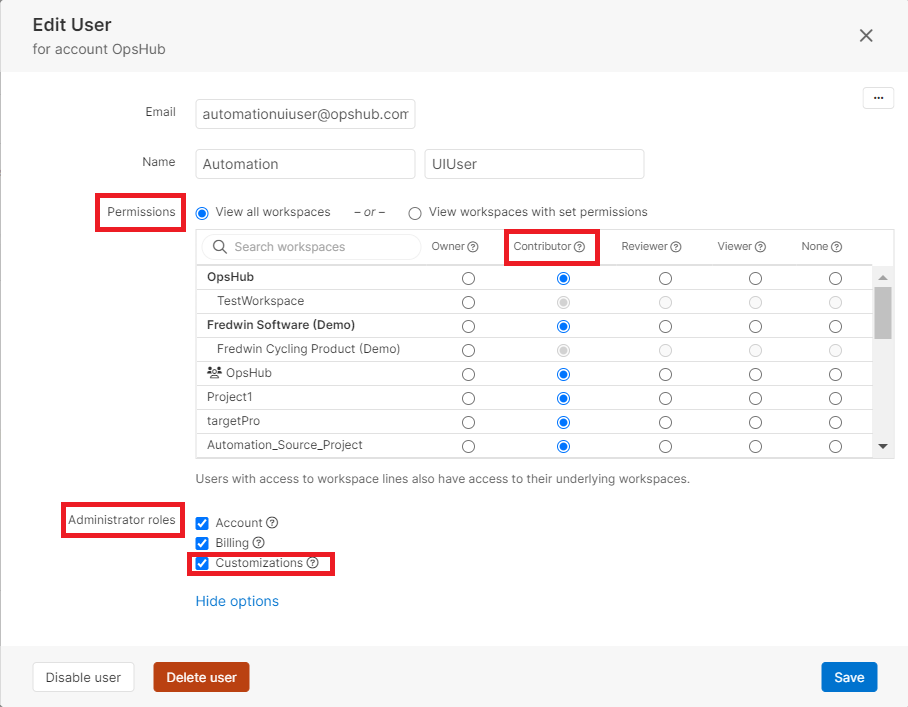

Navigate to Users and select the user for which you want to change the permissions.
4 . Select Administrator roles and Permissions for different workspaces you want to give to integration user.
5 . Save changes
Add Custom Fields
Navigate to Settings given at the top right corner and go to Personal section.

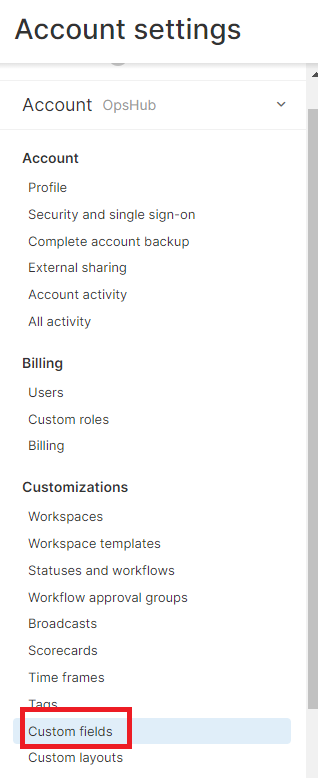

2 . Navigate to Custom fields section.

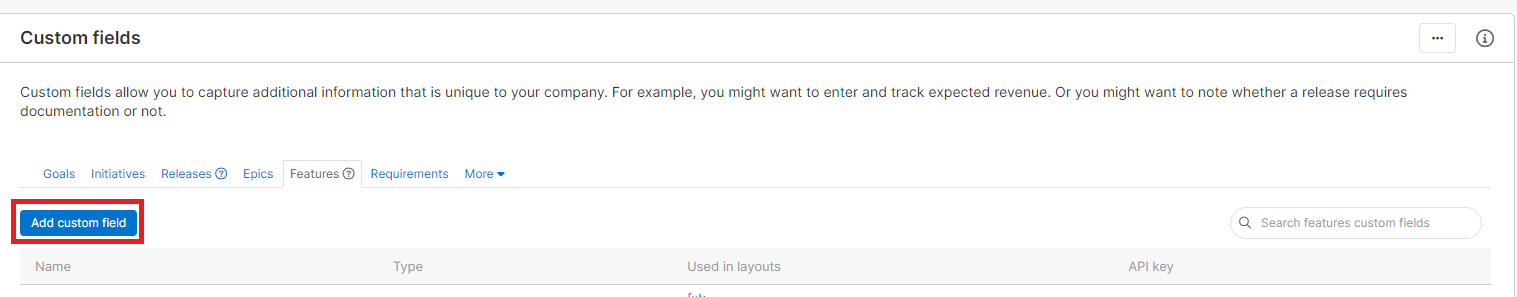

3 . Select the entity for which you want to create the custom field, and click Add custom field.

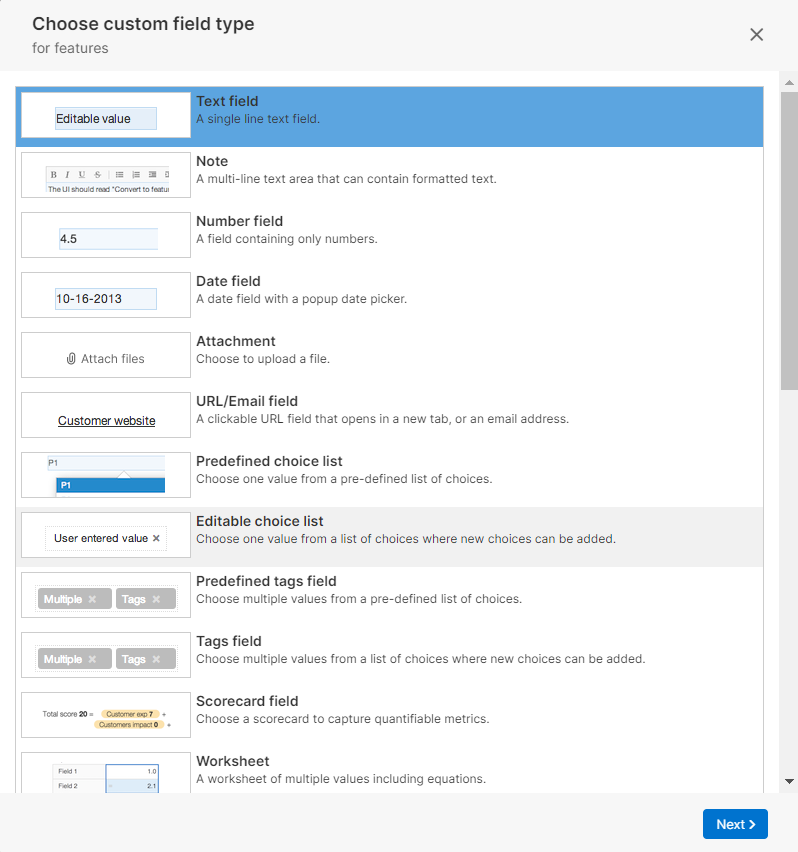

4 . Choose custom field type from the list and click Next.

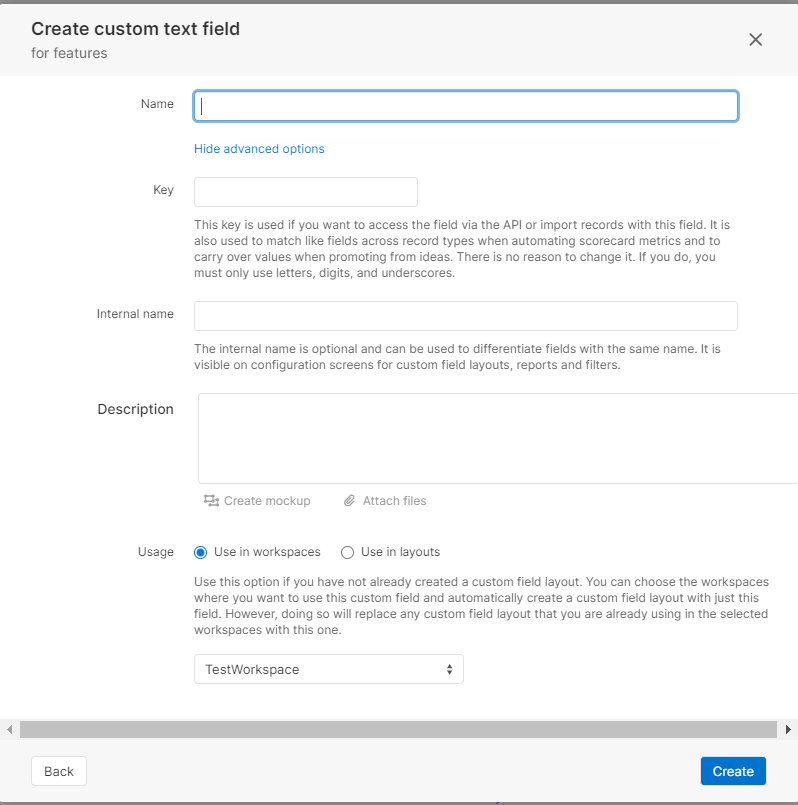

5 . Fill the details for creating the selected custom field.
Add Custom Layout
Navigate to Settings given at the top right corner and go to Personal section.

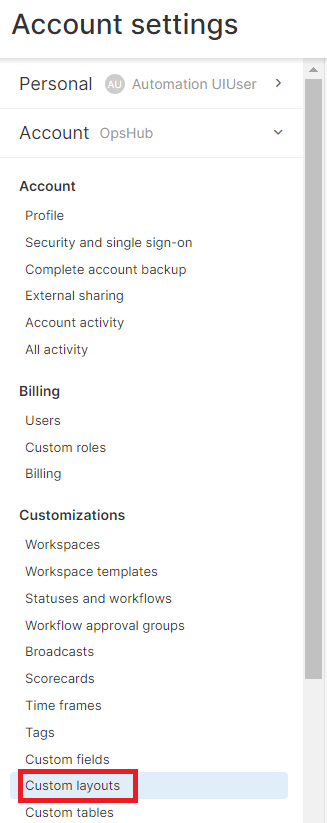

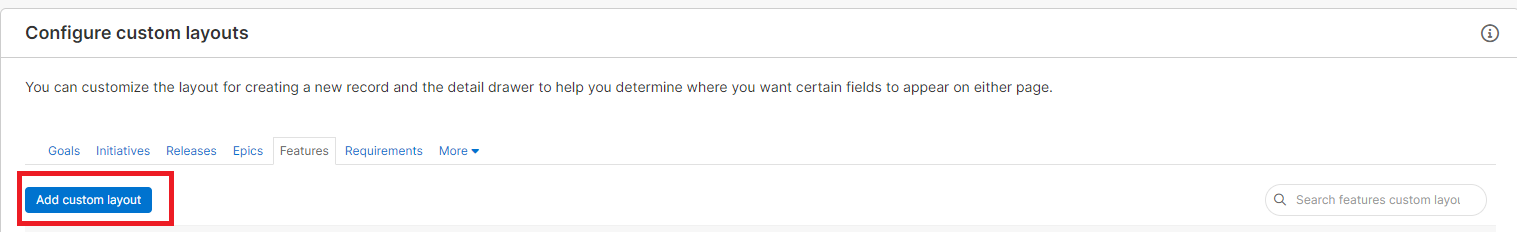

2 . Navigate to Custom layouts section.

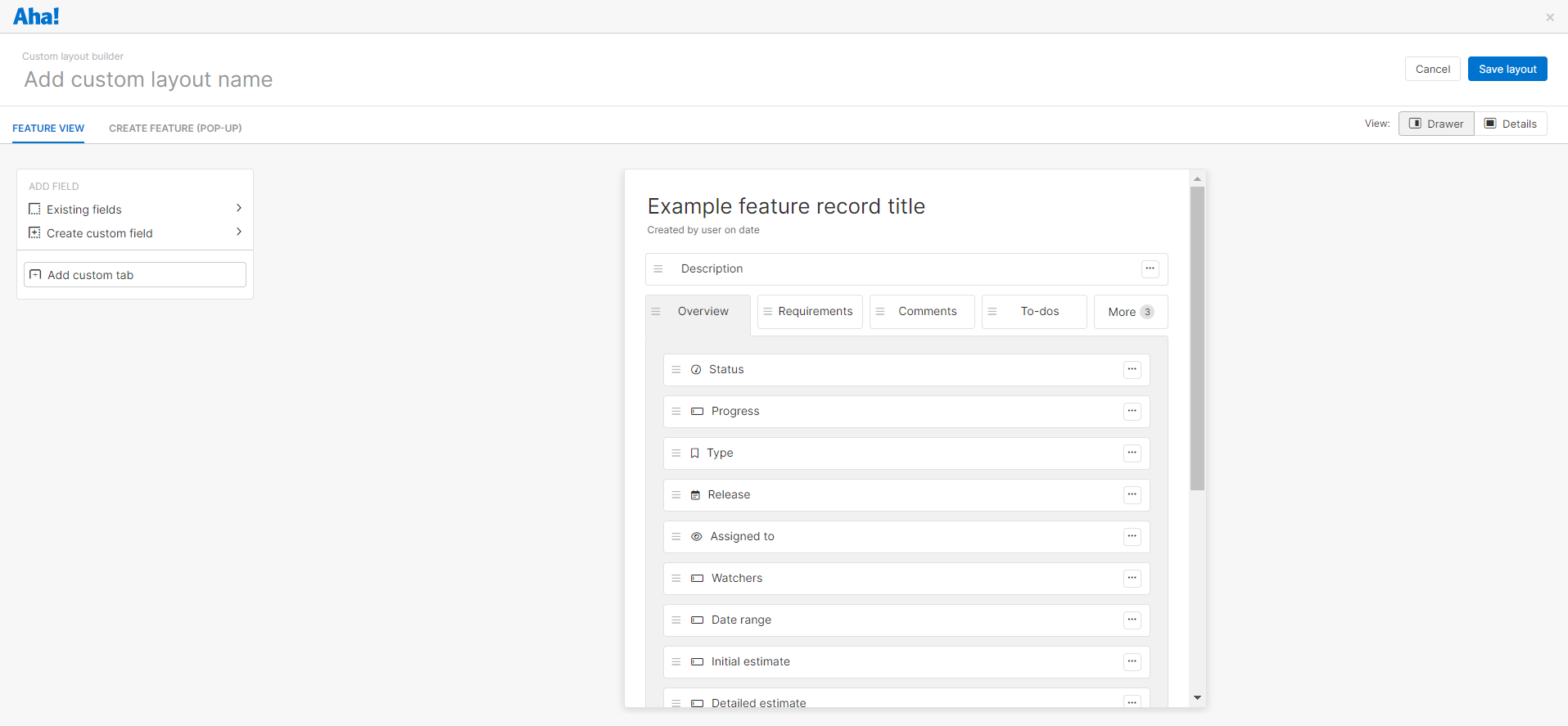

3 . Select the entity for which you want to create the custom layout, and click Add custom layout.
4 . You can choose to create a new custom field or select from the existing custom field from the list.

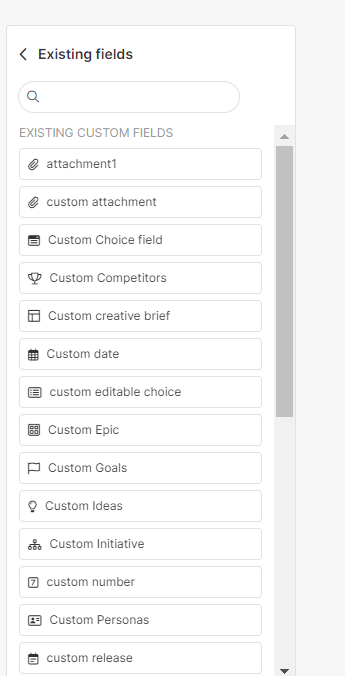

5 . If you choose to use an existing custom field, you can drag and drop it to the fields list given on the right side.

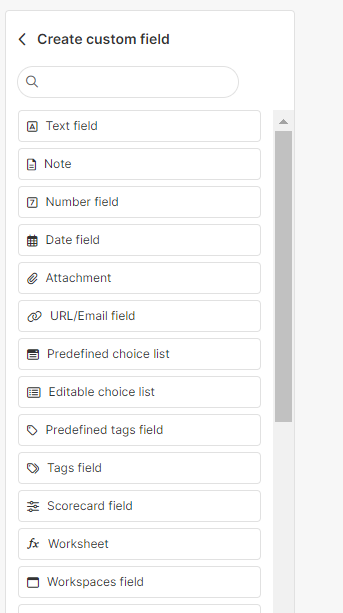

6 . If you choose to create a custom field, you can drag and drop it to the fields list given on the right side. Fill the details for creating the custom fields.
7 . Give the name to the layout and save it.
Steps for generating the API token
Navigate to Settings given at the top right corner and go to Personal section.

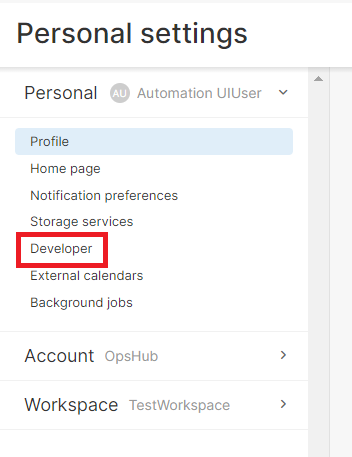

2 . Navigate to the Developer section.

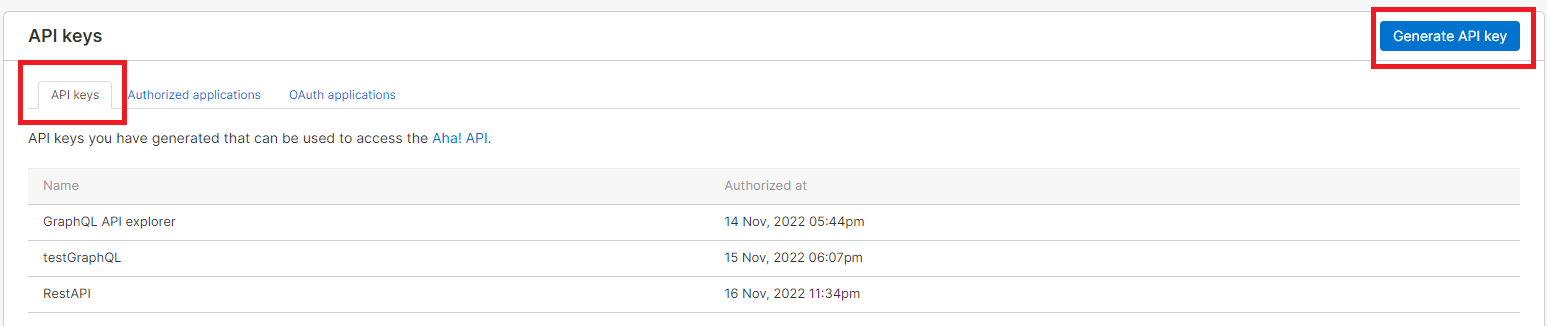

3 . In the API keys section, click Generate API key.

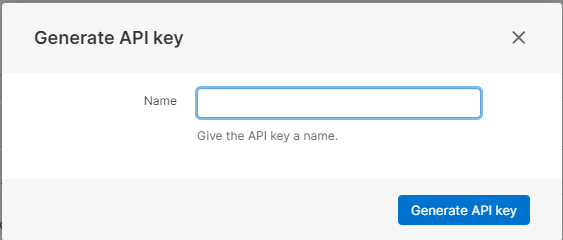

4 . Give name to the key and click on Generate API key.
5 . Copy the generated API key and save it for future reference.
Configuring Scorecard Parameter For Synchronization
To synchronize scorecard parameter values from Aha, additional configuration is required in OIM because Aha APIs do not return these values by default.
1. System Scorecard Fields
Use the following format for
internalName: Product value.<Parameter name>. Example json:
2. Custom Scorecard parameter fields:
Use the following format for
internalName: custom_<CustomFieldKey>.<Parameter Name>. Example json:
The display name for the scorecard parameter field is configurable. The value specified as the display name will be reflected in the OpsHub Integration Manager mapping configuration screen.
The last three parameters in the JSON configuration remain consistent across all scorecard parameters.

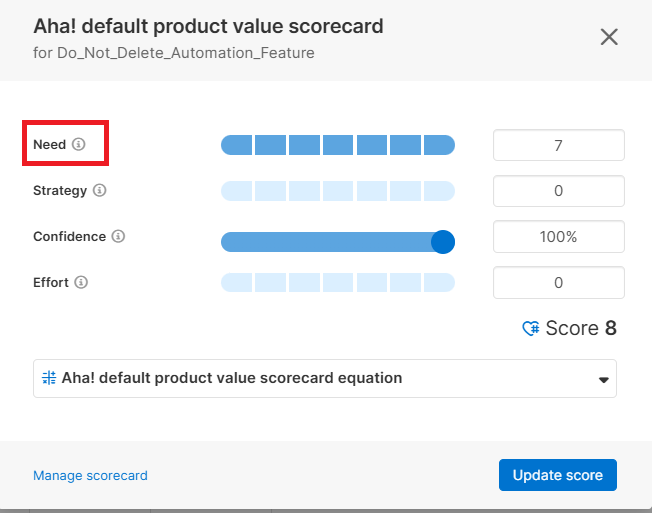

The <Parameter name> specified in the internalName field corresponds to the name displayed in the UI for the respective scorecard. Refer to screenshot below for illustration.

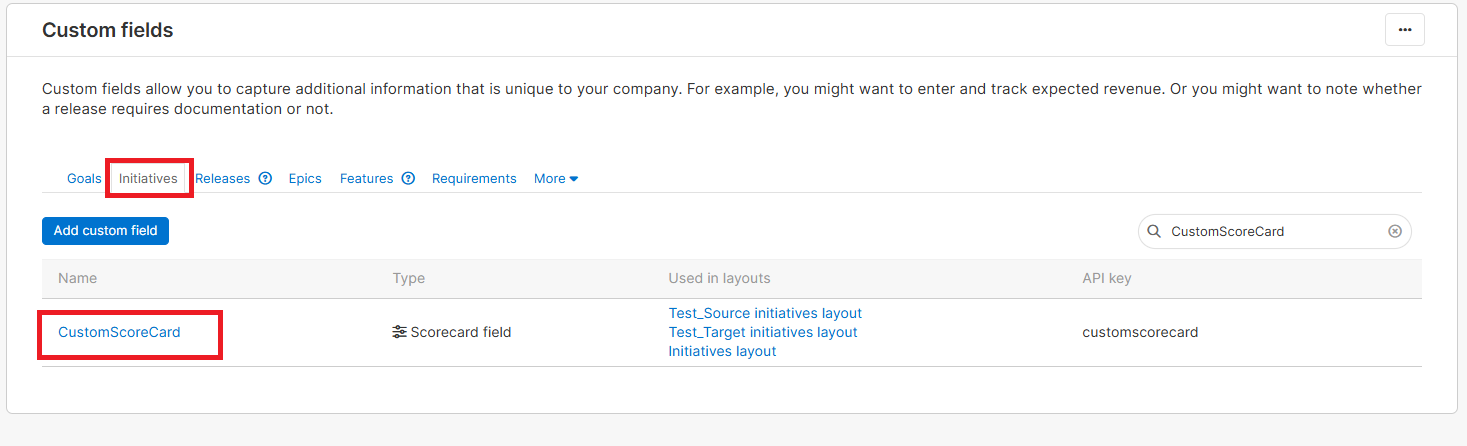

The <Custom Scorecard fieldKey> represents the unique key of the custom field. For details on identifying the custom field key, refer to Get Custom Field Unique Key.
Configure Advance XSLT For Complex Fields
1. Table Field → Rich Text (e.g., Jira Description)
To synchronize a table type field(for example oh_table_field) that contains three columns: Name, Primary customer contact, Email address to rich text type field like Description in Jira in table format, refer to the following sample advance XSLT:

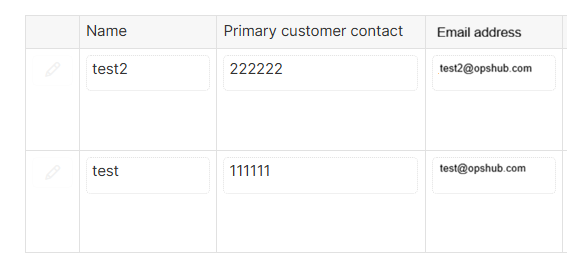

The table field in aha is illustrated in the image below:

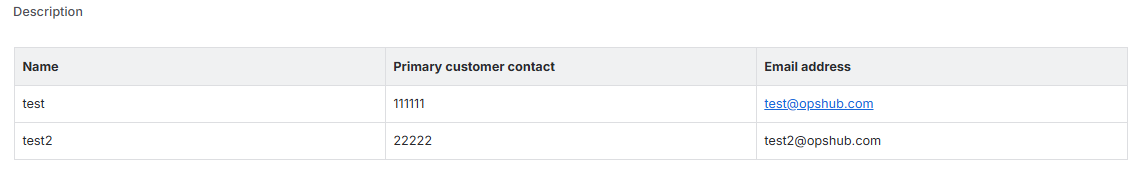

The data after transformation and synchronization to Jira is shown in the following image:
2. Worksheet Field → Rich Text
To synchronize complex type worksheet field(for example, custom_worksheet) that contains two columns: Column Name and Value to a rich text field like Custom Description in Jira, refer to below sample advance XSLT:
The worksheet field in aha is illustrated in the image below:
The data, after transformation and synchronization to Jira, is illustrated in the following image:
Get Custom Field Unique Key
Getting Custom Field Unique Key Using API.
To retrieve custom fields via the API, use the following endpoint: <aha-instance>/api/v1/custom_field_definitions. This can be accessed through browser or tools such as Postman.
Sample JSON response is shown below:
The value in the key field represents the unique identifier for a specific custom field.
Note Multiple custom fields across different entity types may share the same name. Ensure that the key is interpreted in the context of its corresponding entity type (
custom_fieldable_type).
Getting Custom Field Unique From UI.
add after login go to user profile and find the value

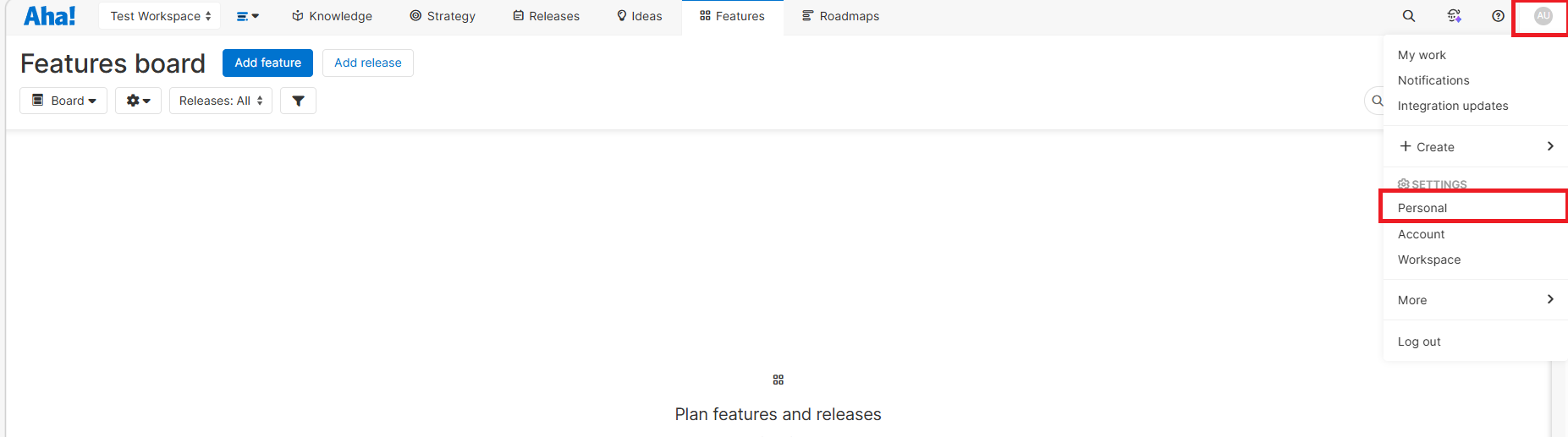

Navigate to the User Personal section under Settings by clicking on the user profile icon located in the top-right corner after logging in
2 . Navigate to Custom fields section.
3 . Select the entity for which you want to identify the custom field key, and locate the relevant custom field.

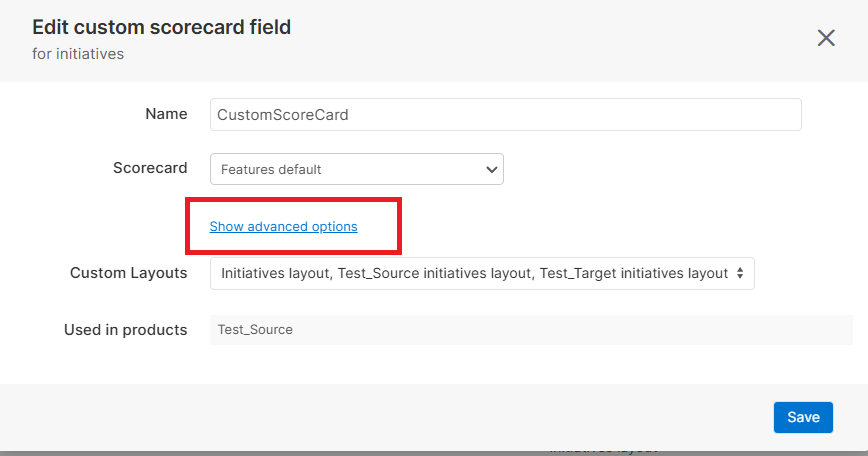

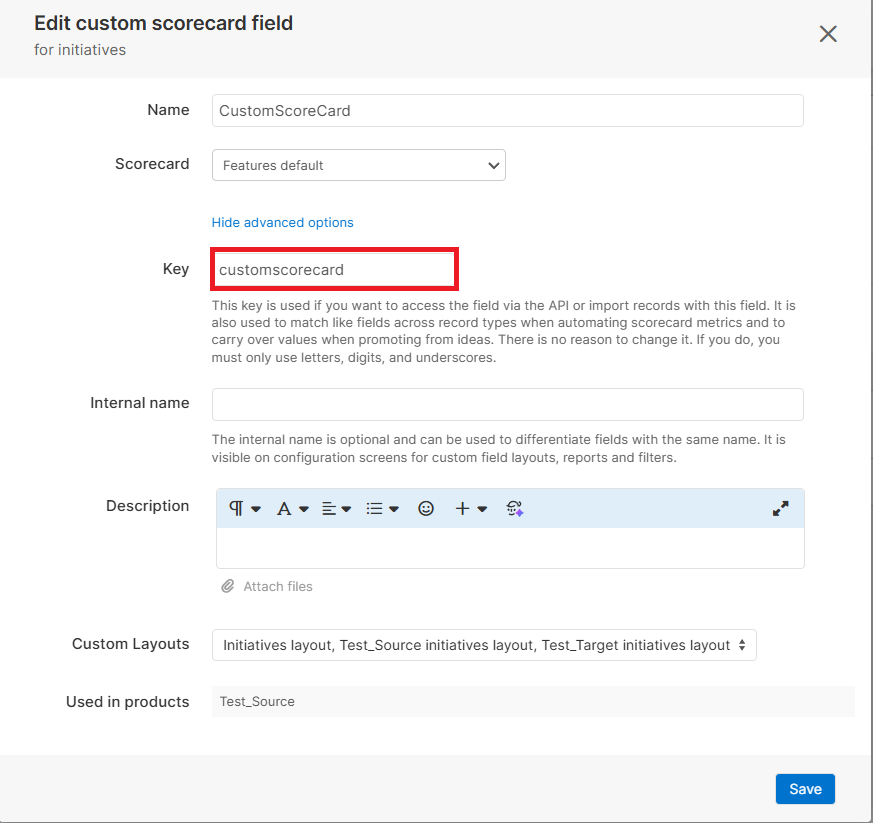

Open the Advanced Configuration settings for the selected custom field.
Retrieve the value displayed in the Key field.
