Page Structure & Markdown Formatting Guide

Creating and Editing Pages in GitBook

How to Edit an Existing Page

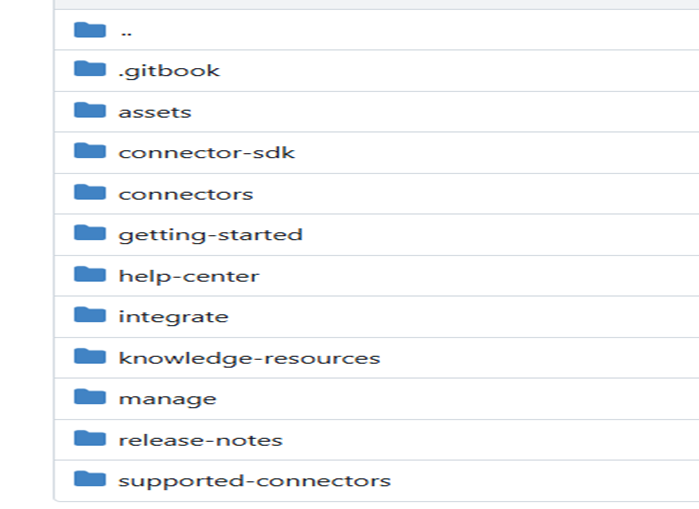

Locate the page in the folder hierarchy.
- Each page in GitBook maps directly to a file in the GitHub repository.
Make required changes (content, formatting, links, images, etc.).
Commit the changes.

When You Add a New Page

Use the correct file name

Use lowercase letters.
Do not use spaces.
Use dashes (-) between words.
Example: database-configuration.md

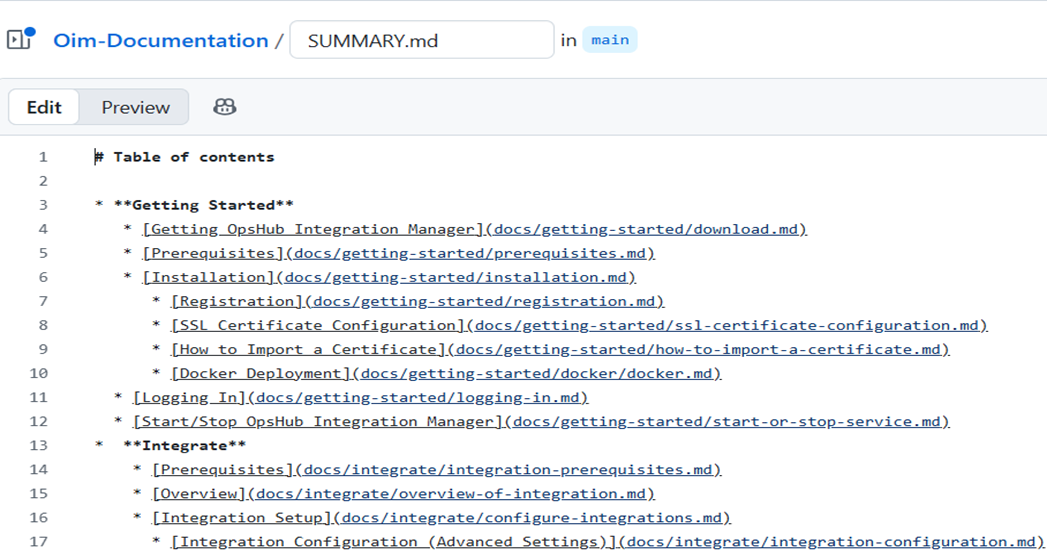

Add the page to `SUMMARY.md`

GitBook only shows pages listed in SUMMARY.md. Example:

   - [Database Configuration](docs/integrate/database-configuration.md)

Commit both files together

Make sure that:
- Your new .md file and the update summary.md file are committed in the same commit.

How to Add a New Connector Entry

To list a new connector in the documentation, follow the steps below. These steps ensure the connector appears correctly in the Connectors list, Supported Connectors table, and the GitBook sidebar.

Add Connector Documentation Page

Create a new markdown file inside the connectors folder.
Example: connectors/snow-quick-connect.md

Add Logo in Assets Folder

Place the connector logo in: assets/connector/ directory.
Logo requirements
- Background color: #EDF4FD
- Background box: 536px × 161px
- Logo size: 72px × 72px
Example file: assets/connector/servicenow.png

Add Entry in `connectors.md`

Use the table/card layout format.

Example:

<tr>
<td align="center"><mark style="color:#555555"><strong>ServiceNow Quick Connect</strong></mark></td>
<td><a href="../assets/connector/70_servicenow.png">ServiceNow Quick Connect</a></td>
<td><a href="servicenow-quick-connect.md">servicenow-quick-connect.md</a></td>
</tr>

Add Entry in `supported-connectors.md`

Include supported versions and entities in the table format.

Add Entry in `SUMMARY.md`

Include the connector under the Connectors section for sidebar navigation.

Example:

* [Connectors](connectors/connectors.md)
  * [ServiceNow Quick Connect](docs/connectors/servicenow-quick-connect.md)

Markdown Basics

This section provides the essential formatting rules for writing clean, consistent, and well-structured documentation using Markdown. Each topic includes examples, best practices, and recommended usage guidelines to ensure clarity and readability across all content.
For additional reference, you may also review the official formatting guide: GitBook Formatting Guide

Headings (Titles and Sections)

Use the # symbol to create headings.
Each additional # level represents a sub-heading.

Example

# H1 – Main Page Heading
## H2 – Section Heading
### H3 – Subsection Heading

Guidelines
- Only H1 and H2 appear in most Table of Contents panels.
- Do not skip heading levels (use H1 → H2 → H3 in proper order).
- Keep headings clear and concise.

Text Styling

Formatting Type

How to Write It

Example Output

Bold

**Bold text**

Bold text

Italic

*Italic text*

Italic text

Inline Code

`OIM_HOME/bin`

OIM_HOME/bin

Strikethrough

~~Incorrect text~~

~~Incorrect text~~

Lists

Bullet List

You can create bullet lists using either * or -.
Example (Using *)
```
* First point
* Second point
```
- Rendered Output:
  First point
  Second point
Example (Using -)
```
- First point
- Second point
```
- Rendered Output:
  First point
  Second point

Numbered List

Numbered lists use numbers followed by a period:
Example
```
1. Step one
2. Step two
3. Step three
```
Rendered Output:

Step one
Step two
Step three

Notes and Warnings

You can create callout-style messages using blockquotes.
- Note Example:
  > **Note:** Restart service after configuration.
  - Rendered Output
    Note: Restart service after configuration.
- Warning Example:
  > **Warning:** Do not delete this folder.
  - Rendered Output
    Warning: Do not delete this folder.

Angle Brackets `<` and `>`

Purpose

How to Write It

Correct Output

Escape < and >

<tag> instead of <tag>

<tag>

Code Blocks (Multiple Lines)

Use triple backticks to create multi-line code blocks.
You can also specify the language to enable syntax highlighting.

JSON Example (How to Write It)

    ```json
    {
      "name": "OpsHub",
      "version": "1.0"
    }
    ```

Rendered Output

{
  "name": "OpsHub",
  "version": "1.0"
}

XML Example (How to Write It)

    ```xml
    <configuration>
      <setting key="timeout">30</setting>
    </configuration>
    ```

Rendered Output

<configuration>
<setting key="timeout">30</setting>
</configuration>

Bash Example (How to write It)

    ```bash
    echo "Hello, OpsHub"
    ```

Rendered Output
```
echo "Hello, OpsHub"
```

Images

Store all images inside the docs/assets directory.
Any project should reference images from this central folder.

Image Reference Syntax

Basic Image

Syntax:
```
![](../assets/image-name.png)
```
Rendered Output

Centered Image

Syntax:

<p align="center">
<img src="../assets/image-name.png" width="500">
</p>

Rendered Output

Image Naming Rules

Avoid spaces in file names.
Use lowercase for consistency.
Use dashes (-) or underscores (_).

Image Path Guidelines

Page Location

Correct File Path

Markdown Example

integrate/advanced-scenario/source-delete-sync.md

../../assets/x.png

![Source Delete Example](../../assets/x.png)

help-center/error.md

../assets/x.png

![Error Handling](../assets/x.png)

Embedding Videos

You can embed videos directly into documentation pages using the {% embed %} tag.

YouTube Embed Example

{% embed url="https://youtu.be/Po6K9_UXrfM" %}

Video Storage Rules
- Video files cannot be uploaded directly into the repository.
- To include video content, follow these guidelines:
  - Upload all videos to YouTube.
  - Ensure the video is publicly visible.
  - Use the embed tag to insert the video link into your documentation pages.

Reusable Content

Reusable content allows you to maintain common text (such as repeated instructions or configuration notes) in a single location and include it across multiple pages.
This helps ensure consistency, easy maintenance, and automatic updates whenever the shared content changes.
All reusable Markdown files should be stored inside: .gitbook/includes.
How to Include a Reusable File:
- Use the {% include %} tag to pull shared content into any page. Example:
```
{% include "../.gitbook/includes/windows-specific-configuration.md" %}
```
Notes:
- Any change in the included file updates all pages automatically.
- GitBook does not create a TOC (index) for included files.
- If indexing is required, split content into smaller include files.

Links

Type

Example

Internal

[Integration Setup](../integrate/setup.md)

External

[OpsHub Website](https://www.opshub.com)

Anchor

[Go to Configuration](#configuration)

Tables

Markdown Table

Markdown supports simple, clean tables for organizing structured information.
Basic Syntax
- Use | (pipe characters) to define columns and - (dashes) to separate the header row:
```
| Column 1 | Column 2   | Column 3 |
|----------|:----------:|---------:|
| Value 1  | Value 2    | Value 3  |
```
- Rendered Output
  Column 1
  Column 2
  Column 3
  Value 1
  Value 2
  Value 3
Notes:
- All rows must have the same number of columns.
- Alignment is optional and can be added using colons (:).

Card View HTML Table

You can use cards to create a visually engaging page layout, combining text, links, and optional images in a clean, grid-based structure.

Example:

<table data-view="cards" data-full-width="false">
  <thead>
    <tr>
      <th align="center" data-card-cover></th>
      <th data-hidden data-card-target data-type="content-ref"></th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <td align="center"><strong>Welcome to OpsHub Guide</strong></td>
      <td><a href="../../README.md">Welcome</a></td>
    </tr>
  </tbody>
</table>

Rendered Output:
Welcome to OpsHub Guide

Conditional Blocks

Conditional blocks allow you to show or hide content depending on selected product variables (e.g., OIM vs OM4ADO).
Example: Show content only when SITENAME = "OpsHub Integration Manager":
```
{% if "OpsHub Integration Manager" === space.vars.SITENAME %}
... content
{% endif %}
```

Variable File (`vars.yaml`)

Variables are defined inside: .gitbook/vars.yaml
These variables allow GitBook to automatically render variable's value across all documentation.
Example (vars.yaml):
```
SITENAME: "OpsHub Integration Manager"
```

Usage

To insert the value of a variable inside your documentation:
```
<code class="expression">space.vars.SITENAME</code>
```

Rendered Output:

This site describes <code class="expression">space.vars.SITENAME</code> features.

(This replaces the variable with its actual value.)
