PagerDuty
Prerequisites
User Privileges
Create a user in PagerDuty that is dedicated for OpsHub Integration Manager. This user shouldn't perform any other action from PagerDuty's user interface. We will refer to this user as IntegrationUser further in the document. For the steps to add user, please see Steps to Add User.
For authenticating the above user, we would need an API token. For the steps to generate an API token, please see How to Generate API token section.
Roles and Permissions
When PagerDuty is only source end point (Only Read)
Assign Observer role to IntegrationUser.
If you want to configure Remote Entity Fields, please refer to Read & Write section below.
When PagerDuty is destination end point (Read & Write)
Assign Responder role to IntegrationUser.
In PagerDuty, permissions can be assigned in either of the three ways:
Permission at Instance level: If you want to assign permissions for the incidents of all the public services, please refer to Permission at instance level section for step-by-step guide on how to assign these permissions.
Permission at Service level: If you want to assign permissions for incidents in a particular service, please refer to Permission at service level section for step-by-step guide on how to assign these permissions.
Permission at Team Level: If you want to group services into teams and assign permissions to the team instead of assigning the same permission at multiple services, please refer to Permission at team level section for step-by-step guide on how to assign these permissions. Refer to How to group services into teams for help around grouping the services into teams.
System Configuration
Before you continue with the integration, you must first configure PagerDuty system onto OpsHub Integration Manager.
Click System Configuration to learn the step-by-step process to configure a system.

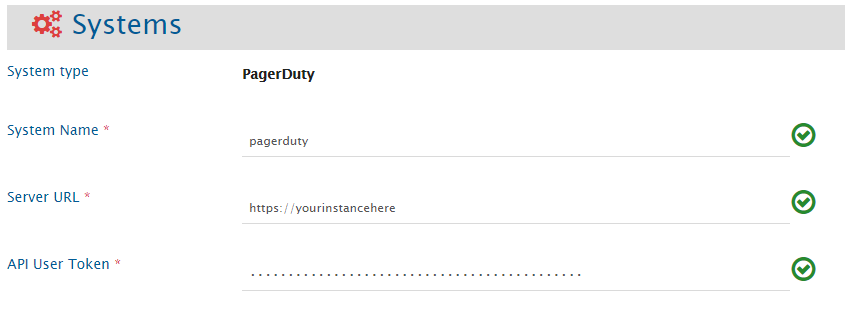

Refer to the screenshot given below:
Field Name
When field is visible on the System form
Description
System Name
Always
Provide PagerDuty System Name
Server URL
Always
Set the URL of PagerDuty instance.
API User Token
Always
Add the User API token generated for the dedicated user for OpsHub Integration Manager. Please refer to How to Generate API token.
Mapping Configuration
Map the fields between PagerDuty and the other system to be integrated to ensure that the data between both the systems synchronize correctly.
Click Mapping Configuration to learn the step-by-step process to configure mapping between the systems.

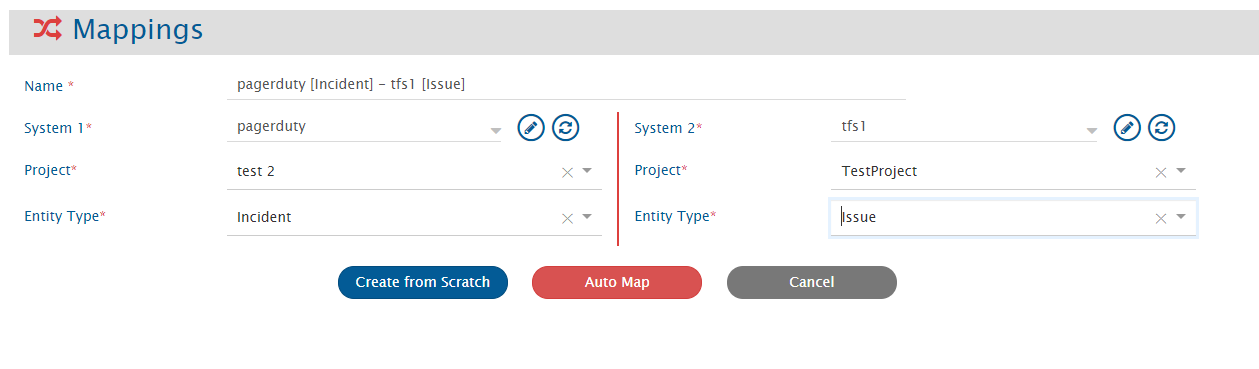

Note : While configuring mapping, the details appearing in the 'Projects' drop-down are services in PagerDuty.
Note : Refer to the table given below to see which fields are supported when PagerDuty is Source and Target.
Field Name
DataType
Is supported when PagerDuty is Source?
Is supported when PagerDuty is Target?
Incident Key
Text
✅
❌
Incident Number
Numeric
✅
❌
Incident Id
Text
✅
❌
Title
Text
✅
✅
Description
Text
✅
✅
Status
Look-up
✅
✅
Priority
Look-up
✅
✅
Conference Number
Text
✅
✅
Conference URL
Text
✅
✅
Comments
There are two types of comments in PagerDuty:
Notes
Status Updates
Synchronization for both of these comment types is supported.
By default, Notes in PagerDuty is synchronized to and from the other end system.
User should change the comments mapping manually to synchronize Status Updates in PagerDuty to and from the other end system.
To learn how to configure comment mapping, refer: Map Comments

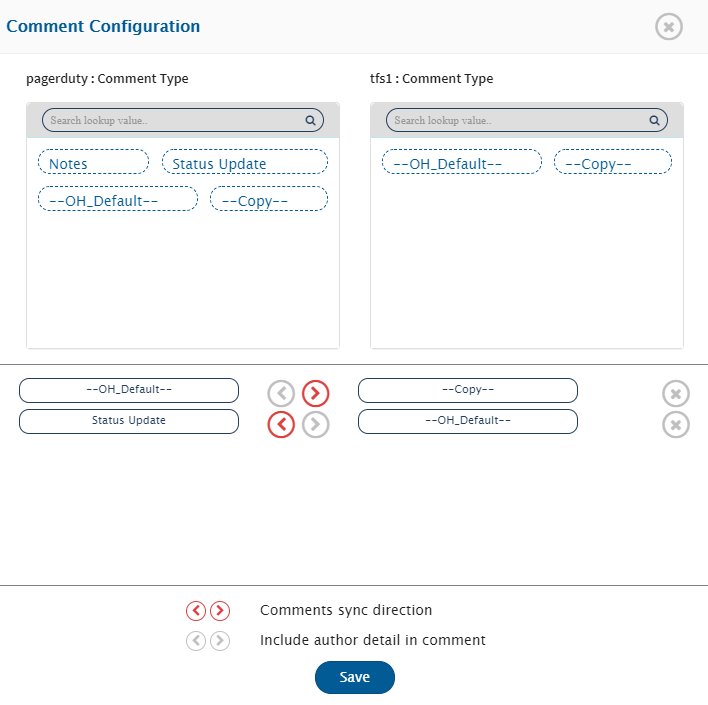

Comment Mapping for synchronizing Status Update as Comment:
Integration Configuration
In this step, set a time to synchronize data between PagerDuty and the other system to be integrated. Also, define parameters and conditions, if any, for integration.
Click Integration Configuration to learn the step-by-step process to configure integration between two systems.

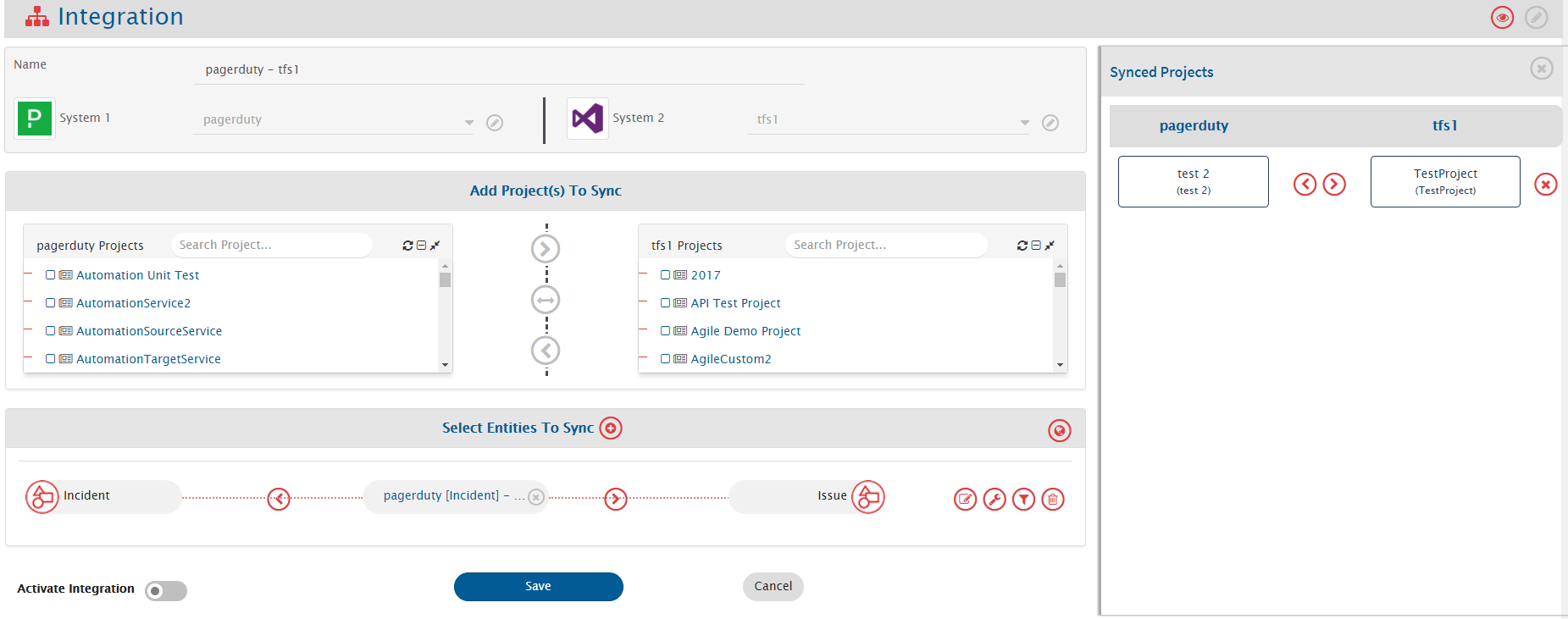

Note : While configuring integration, the details appearing in the 'Projects' drop-down are services in PagerDuty.
Criteria Configuration
If you want to specify conditions for synchronizing an entity between PagerDuty and the other system to be integrated, you can use the Criteria Configuration feature.
To learn how to configure criteria, refer: Configure Criteria page.
In PagerDuty, criteria can be configured on the fields: Status and Incident Key.
Field Name
Criteria Description
Criteria Example
Status
Status is acknowledged
statuses[]=acknowledged
Status
Status is acknowledged or triggered
statuses[]=acknowledged&statuses[]=triggered
Incidence Key
Incidence key is abc (here, abc is just example, you can get incidence key of an incident after creating it)
incident_key=abc
Target LookUp Configuration
Provide query in Target Search Query field such that it is possible to search the entity in the PagerDuty as a destination system.
To learn how to configure Target Lookup, refer: Configure Target Lookup
In PagerDuty, Target Lookup can be configured on 3 fields: Incident Number, Incident Id, and Incident Key.
Field Name
Target Lookup Query Syntax
Incident Key
incident_key=@Source_System_Field_name@
Incident ID
ID=@Source_System_Field_name@
Incident Number
ID=@Source_System_Field_name@
Known Limitations
When PagerDuty is Source
For below fields, revision details are not available. Hence, only the state of these fields at the time of synchronization will get synchronized, and the states before the time of synchronization will not be synchronized.
Status, Conference Number, and Conference URL
Criteria is not fully supported in PagerDuty. An entity is considered as qualified only if it meets the criteria and is created after the polling time.
When PagerDuty is Target
Description cannot be updated. So, to avoid failure, keep the 'Sync When?' to 'Create' while mapping from other end point to PagerDuty in Advanced Settings. To learn about Advanced Settings, refer: Advanced Settings
Status cannot be changed from ‘Acknowledged’ to ‘Triggered’ through integration. If it is tried to be changed, then failure would be generated.
Conference fields unset is not possible. If user tries to unset it, then no failure occurs, but it will not be unset as well.
Best Practices
When PagerDuty is Source
Having single integration for two services will give more performance than having two integrations for each service. If you configure two different integrations for two services, then one will not slow down the performance of other, but if you know the services upfront, configuring it in one go will give high performance. But, what if a user later wants to add a service to an integration? Ans: The user should create separate integration first, integrate past data and then merge both the services in one integration.
Appendix
Add User
To perform synchronization with PagerDuty, add a user for integration to the PagerDuty System. This user should not perform any task from UI. Login to the PagerDuty system with base role Admin, Global Admin, or Account Owner to add a new user.
Steps to Add a User

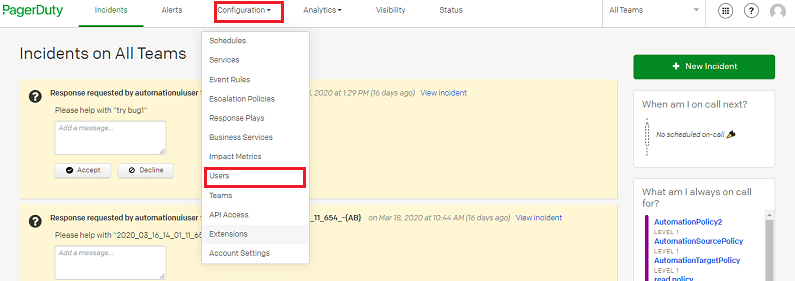

Go to Configuration → Users

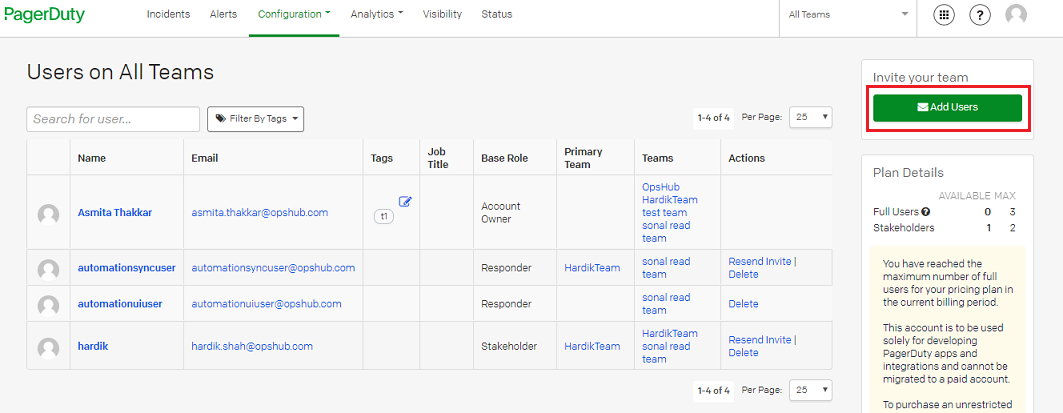

Click Add Users on the top right corner of the page.

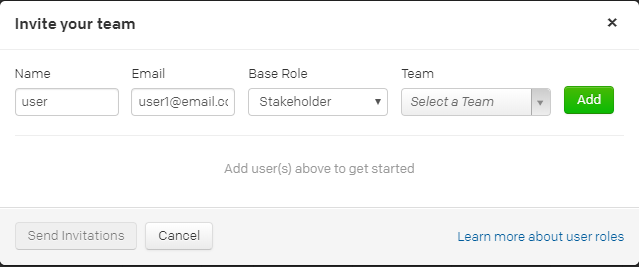

Enter the user details and select Base Role for the user.

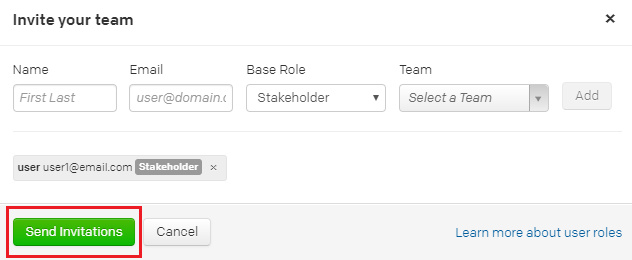

Click Send Invitations
An invitation will be received on the email provided in the details above. Accept the invitation from the email. Thus, the user will be added.
Assign Roles to User
Instance Level Permission
Read
To read incidents from all the public services, assign Observer base role to the IntegrationUser.
Read & Write
To read incidents from all the public services, and to write to all the public services, assign Responder base role to the IntegrationUser.
For better understanding of User Roles at instance level from PagerDuty context, refer: User roles at Instance level
Steps to assign a Base Role
Login to PagerDuty from an account having user role Admin, Global Admin or Account Owner
Go to Configuration → Users

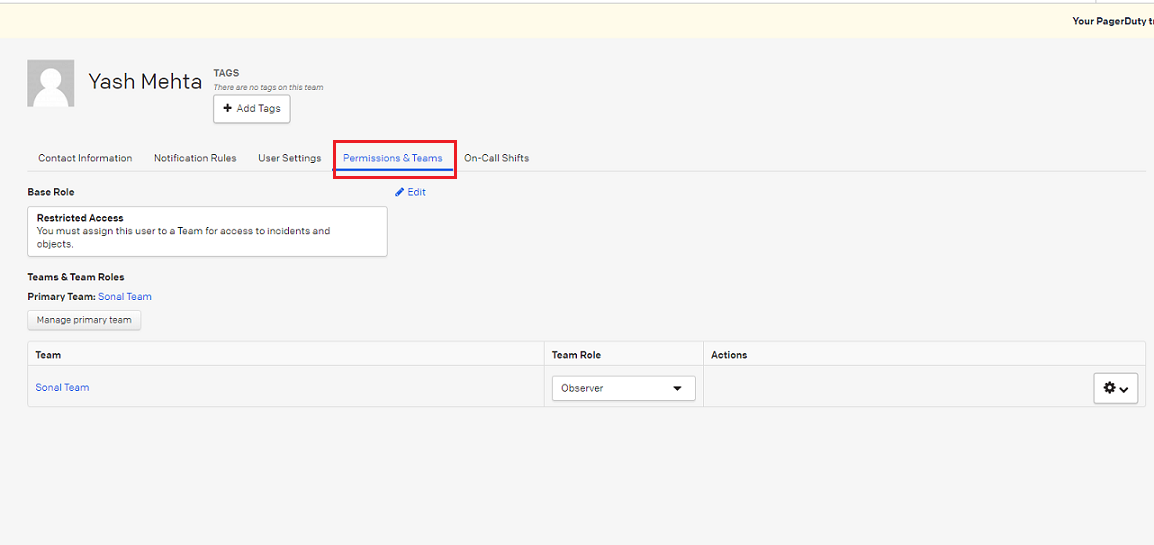

Click user which is used for synchronization and go to Permissions and Teams tab:

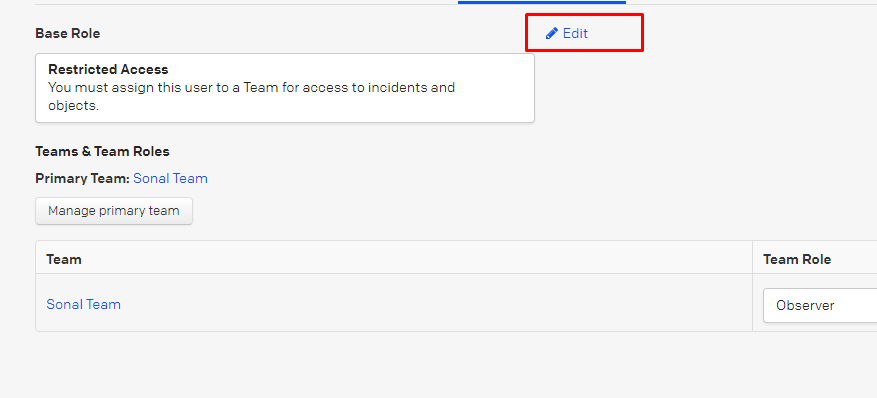

Select Edit option beside Base role:

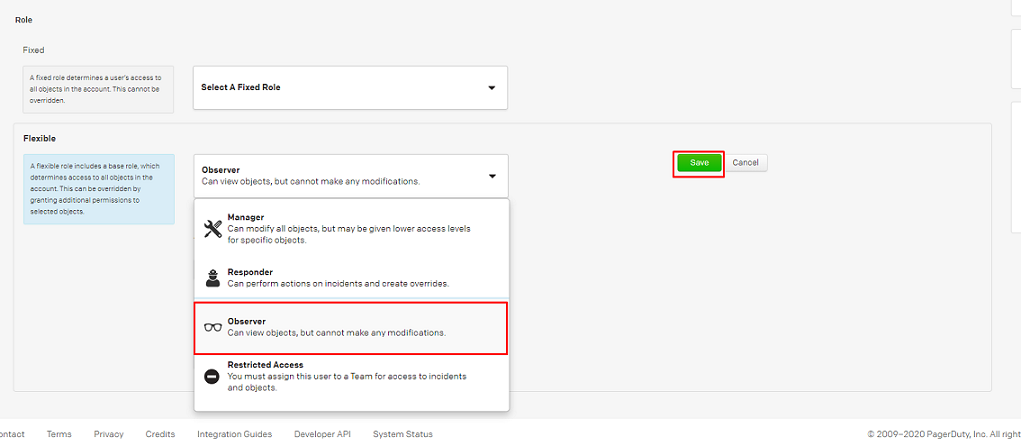

Select Observer role under flexible roles and then Save the configuration. You can assign Responder role in the same way.
Service Level Permission
Read
To read incidents from a particular service, set Observer role at service level for the IntegrationUser.
Read & Write
To read incidents from a particular service and to write to it, assign Responder role at service level for the IntegrationUser.
For better understanding of User Roles at service level from PagerDuty context, refer: User roles at Service level
Steps to Set a Role at Service Level
Login to PagerDuty from an account having user role Admin, Global Admin or Account Owner
Go to Configuration → Users
Click user which is used for synchronization and go to Permissions and Teams tab:

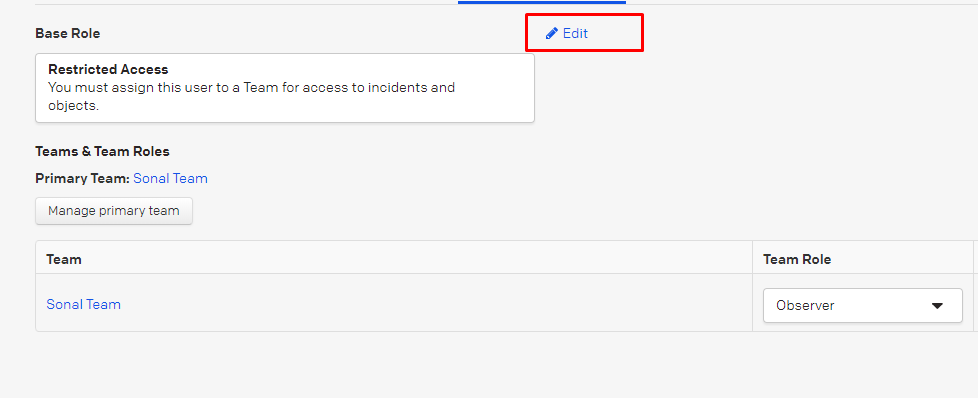

Select Edit option beside Base role:

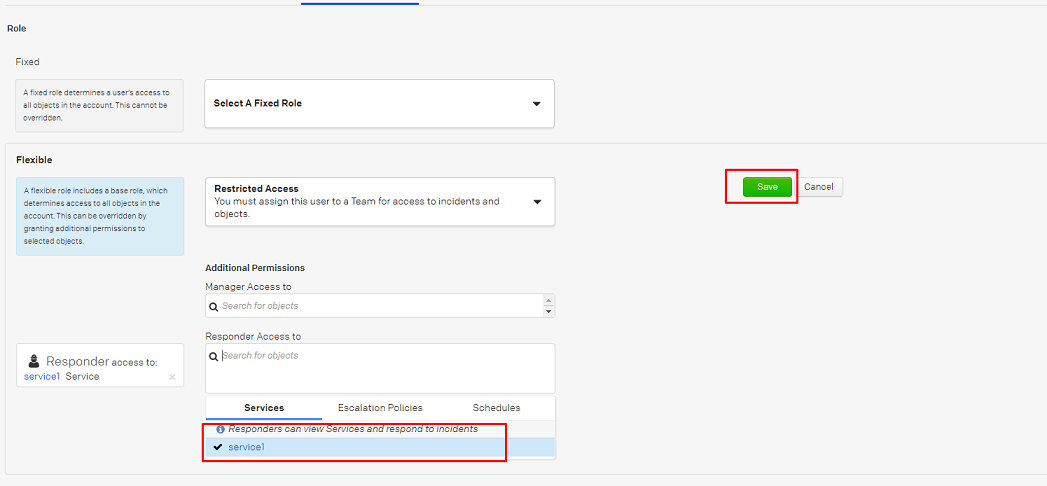

Select services under Responder Access To for which you want to assign the Responder role. You can give Observer access in the same manner.
Team Level Permission
Read
To read incidents from a particular team, set Observer role at team level for the IntegrationUser.
Read & Write
To read incidents from a particular team and to write to it, assign Responder role at team level for the IntegrationUser.
For better understanding of User Roles at team level from PagerDuty context, refer: User roles at Team level
Steps to set a role at Team Level
Login to PagerDuty from an account having user role Admin, Global Admin or Account Owner
Go to Configuration → Users
Click user which is used for synchronization and go to Permissions and Teams tab:

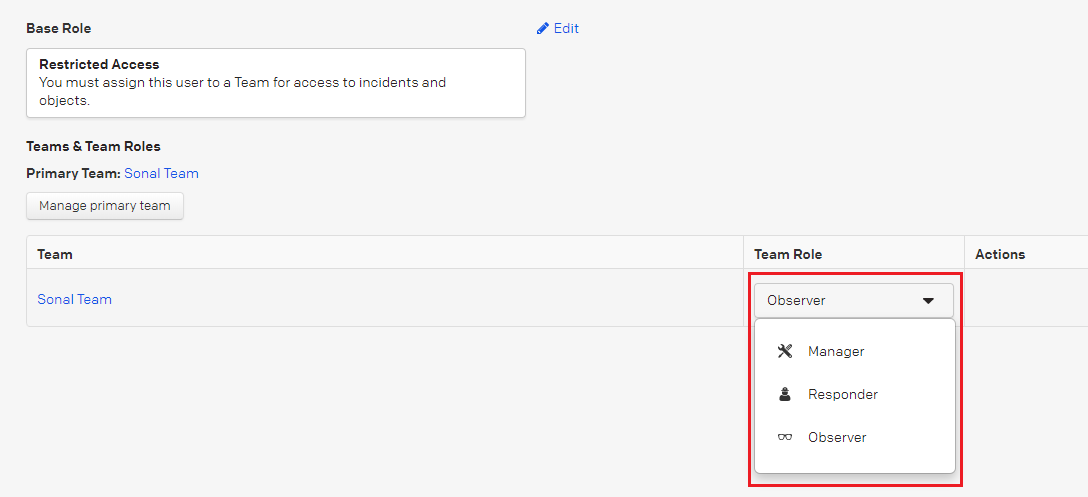

Select Team Role to Observer. Here, you can select the role that you want to assign:
How to Generate API token
Login to PagerDuty from 'IntegrationUser' account.

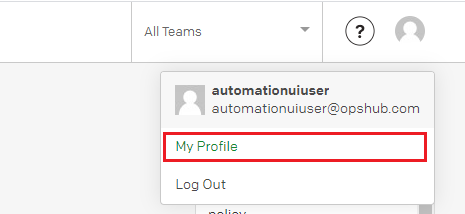

Go to User → My Profile

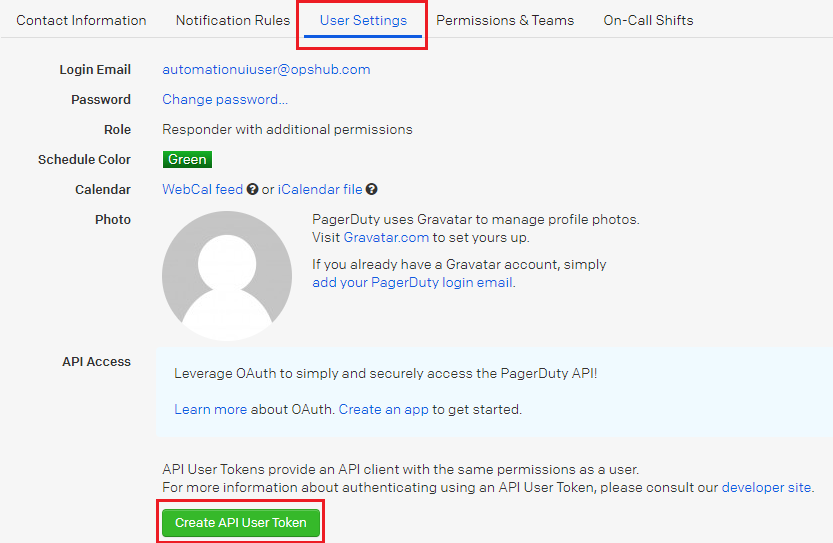

Go to User Settings tab
Click Create API User Token
Thus, an API token will be generated for the integration user.
Copy and save this API token, as it will not be fully visible again.
