Windchill PLM

Prerequisites

User Privileges

Before you begin, create a dedicated user in Windchill PLM that will be used specifically for this integration. This dedicated user is called an "Integration User".

• This user will handle all data synchronization between Windchill PLM and other systems.

• This user shouldn't perform any other action from Windchill PLM's user interface.

Required Scope/Permission

• When configuring an integration with Windchill PLM, it’s essential to assign only the necessary permissions based on the planned operations and business requirements. These permissions control what data the integration user can access or modify, ensuring both functionality and security within Windchill PLM.

• To add or remove permissions for the integration user in Windchill PLM, use the Policy Administration tools, which allow administrators to manage access at the domain, role, or object level as described in the Security Management Permissions page.

Note: If required permissions are missing or insufficient, the integration may fail or restrict operations. Always ensure that the integration user has the appropriate permissions before beginning the setup.

Permissions Required for Integration User in Windchill PLM

The integration user must have the following Windchill PLM permissions:

• Read: Ability to view items.

• Create: Ability to create new items.

• Modify, Modify Identity: Ability to update and change item fields.

• Modify Content: Ability to attach files to items.

• Download: Ability to download attached files.

• Set State: Ability to change the lifecycle state of items (e.g., moving from "Open" to "In Progress").

These permissions should be granted for all products and entities that you plan to synchronize as part of the integration.

---

System Configuration

As you kickstart the integration, the user must first configure Windchill PLM system in OpsHub Integration Manager. Click System Configuration to learn step-by-step process to configure a system. Refer to the following screenshot:

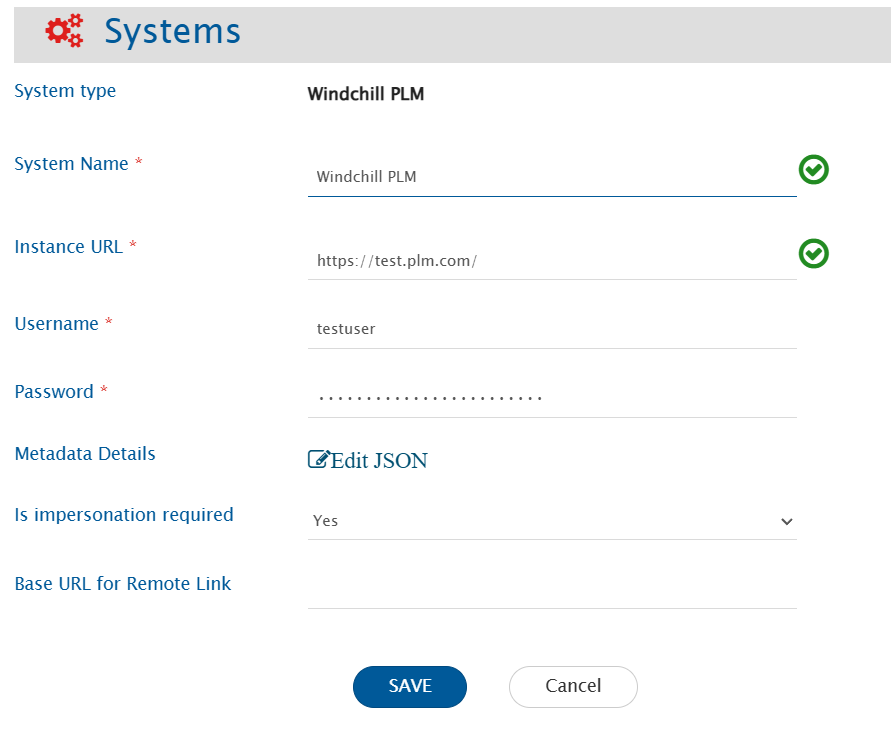

Windchill PLM System Form Screenshot

Windchill PLM System Form Details

Field Name	When is the field visible	What to Enter
System	Always	Select Windchill PLM from the dropdown list
System Name	Always	Give this configuration a unique name (e.g., "Production Windchill" or "Windchill Main"). This helps you identify this connection later
Instance URL	Always	Provide Server URL of the Windchill PLM instance. This URL will be used for communicating with PLM system API. The format of the URL would be: http://hostname:port/ or https://hostname:port/. Example: https://windchill.yourcompany.com/
Username	Always	Provide the username of the PLM user dedicated to OpsHub Integration Manager. This user should not be used for any other operations from Windchill PLM's user interface and must have the required privileges to access data. For more details, refer to User privileges section.
Password	Always	Provide the password of the user added in Username field.
Metadata Details	Always	Provides the link types' metadata, and define synchronization behaviour for fields where applicable. This data is pre-populated in JSON format according to the system metadata (Entity type, field attributes, relationships, etc.). See the Advanced Configuration section for details.
Base URL for Remote Link	Always	This URL is used to generate links that open the related item in Windchill PLM. When to use this: If your Windchill PLM has different URLs for internal use (API) versus external access (user interface), enter the user-facing URL here. Example: If your API URL is https://api.windchill.com/ but users access Windchill PLM at https://windchill.yourcompany.com/, enter the second URL here. If left empty, the system will use the Instance URL for generating links.

Advanced Configuration: Metadata Details

The Metadata Details field fine-tunes how Windchill PLM fields are handled during synchronization. This setting is optional but can be very helpful when user needs to sync link or to resolve specific data handling issues.

When to use this configuration?

Use this advanced configuration if:

• Windchill PLM does not correctly indicate whether a field is read-only or editable.

• Windchill PLM does not correctly specify whether a field supports multiple values.

• The user needs to synchronize custom fields that are not automatically detected.

• The user wants to define a specific date format for date fields.

• The user needs to configure relationships between different types of items.

Understanding the JSON Structure

The Metadata Details' field accepts configuration in JSON format. Here's a template configuration with all possible options:

{
  "entities": [
    {
      "internalName": "PTC.ChangeMgmt.Issue",
      "fields": {
        "system": [
          {
            "internalName": "comIssueAssignmentDate",
            "displayName": "Assignment Date",
            "dataType": "date_string",
            "multiselect": false,
            "mandatory": false,
            "readOnly": false,
            "dateFormat": "yyyy-MM-dd'T'HH:mm:ss.SSSZ"
          }
        ]
      },
      "relationship": {
        "linkTypes": [
          {
            "linkType": "ReferenceObjects",
            "reverseLinkType": "ReferenceObjects"
          }
        ]
      }
    }
  ]
}

JSON Configuration Parameters

Note: Refer to Get Internal Field Names for Windchill PLM Entities to learn how to retrieve the exact entity's and field's internal names for the Windchill PLM instance.

Entity Level

internalName (at entity level)

• This identifies the type of item in Windchill PLM configuration.

• Use the exact internal name that Windchill PLM uses.

• Example: "PTC.ChangeMgmt.Issue" for Issue items.

Field Level

internalName (at field level)

• The internal name that Windchill PLM uses for this field.

• To modify an existing field, use its exact internal name from Windchill PLM.

• To add a new custom field, use the unique name assigned to it in Windchill PLM.

displayName

• The user-friendly name shown in the integration interface.

• It'll be visible when mapping fields.

dataType

• Specifies what type of data the field contains.

• Common values: text, lookup, date, boolean, number.

• Use these to correct cases where Windchill PLM doesn't report the correct type.

multiselect

• Set to true if the field can hold multiple values.

• Set to false if it can only hold a single value.

• Example: A "Categories" field that allows multiple selections should be set to true.

mandatory

• Set to true if this field must have a value.

• Set to false if the field is optional.

readOnly

• Set to false to allow the integration to update this field.

• Set to true to prevent updates to this field.

• Useful when: Windchill PLM reports a field as read-only, but it can be updated through the API (like the Status field).

dateFormat

• Specifies the format for date fields.

• Only needed if Windchill PLM uses a non-standard date format.

Relationship Level

linkTypes

• Defines how different items can be linked together.

• linkType: The type of link from the current item to another.

• reverseLinkType: The type of link from the other item back to the current item.

Note: Only include the fields in the JSON that require customization. Standard fields that function correctly do not need to be listed.

JSON Configuration Examples:

1. Make the status field writable (set readOnly to false):

{
  "entities": [
    {
      "internalName": "PTC.ChangeMgmt.Issue",
      "fields": {
        "system": [
          {
            "internalName": "status",
            "readOnly": false
          }
        ]
      }
    }
  ]
}

1. Make a field multi-select (set multiselect to true):

{
  "entities": [
    {
      "internalName": "PTC.ChangeMgmt.Issue",
      "fields": {
        "system": [
          {
            "internalName": "categories",
            "multiselect": true
          }
        ]
      }
    }
  ]
}

1. Add a custom mandatory text field reporter:

{
  "entities": [
    {
      "internalName": "PTC.ChangeMgmt.Issue",
      "fields": {
        "system": [
          {
            "internalName": "comIssueReporter",
            "displayName": "Reporter",
            "dataType": "text",
            "mandatory": true
          }
        ]
      }
    }
  ]
}

---

Supported Entities

Currently, this integration supports:

• Issue (Soft types / Subtypes of Problem Reports)

Note: Entity support will be enhanced in the future, with additional Windchill PLM objects incorporated based on evolving business needs and priorities.

---

Mapping Configuration

Map the fields between Windchill PLM and the other system to be integrated to ensure that the data between both the systems synchronize correctly. Refer to Mapping Configuration to learn the step-by-step process to configure mapping between the systems.

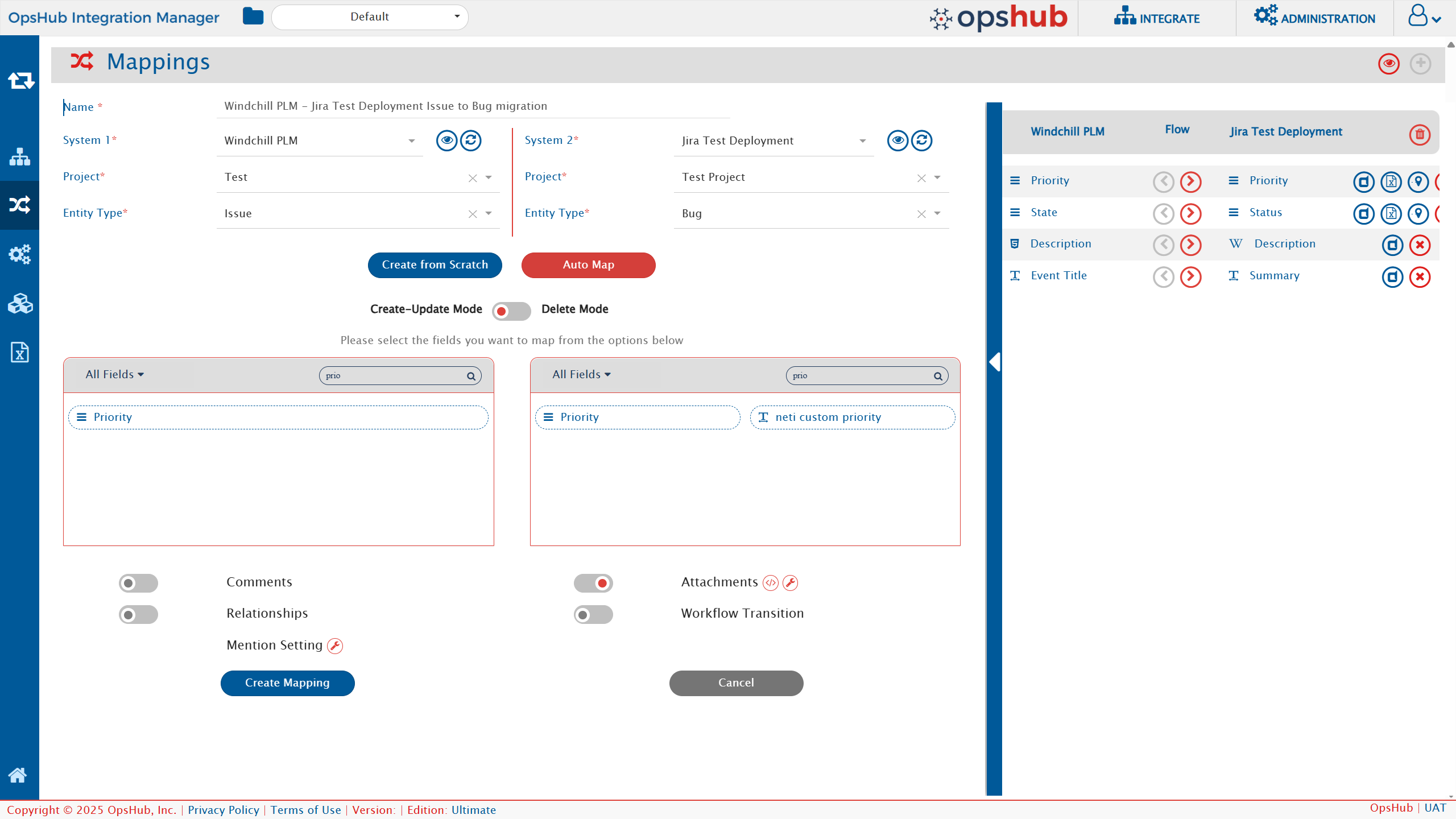

Windchill PLM Mapping Configuration Screenshot

---

Integration Configuration

Set a time to synchronize data between Windchill PLM and the other system to be integrated. Also, define parameters and conditions (if any) for integration. Refer to Integration Configuration to learn the step-by-step process to configure the integration between two systems.

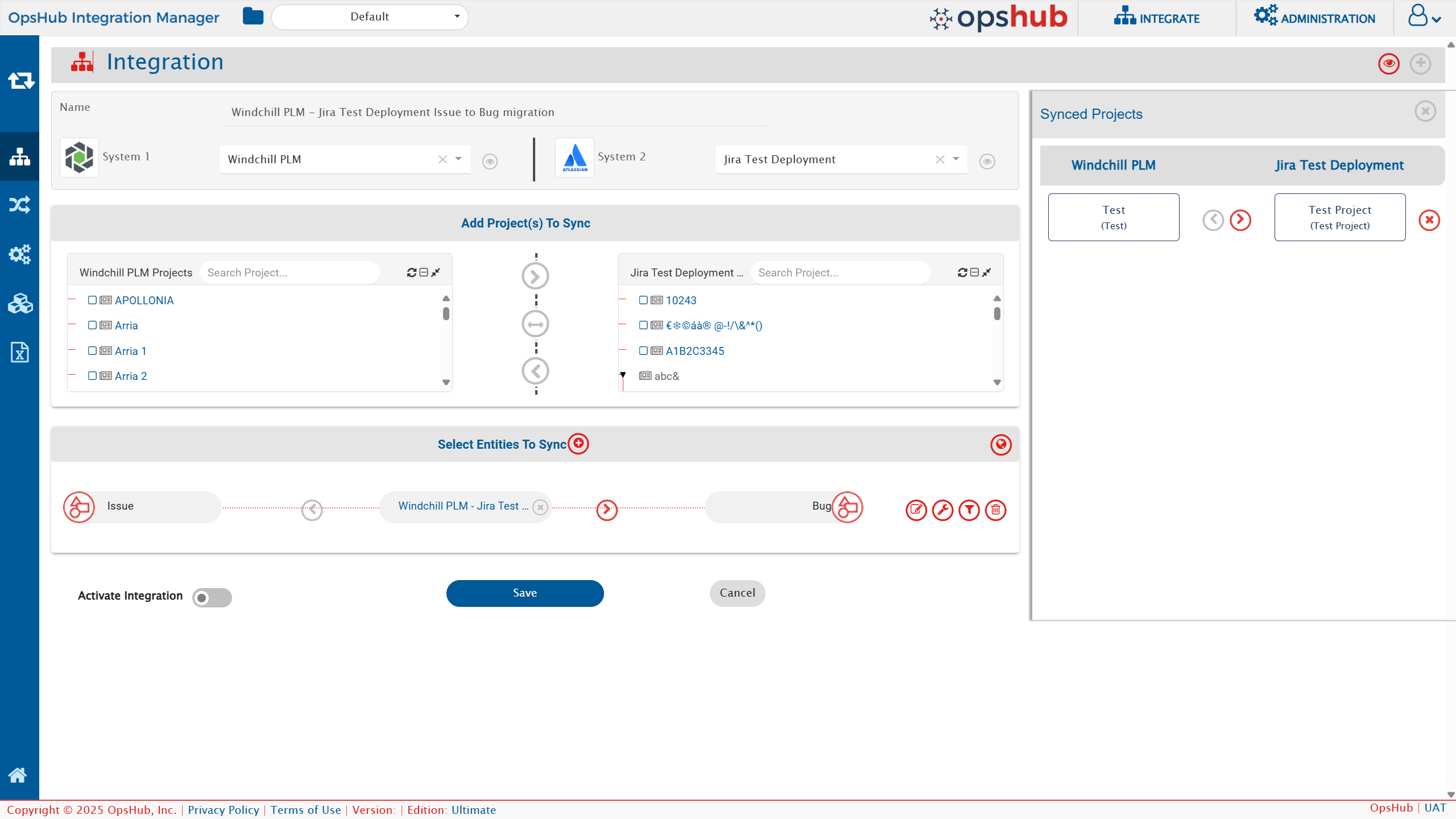

Windchill PLM Integration Config Screenshot

Criteria Configuration

If the user wants to specify conditions for synchronizing an entity from Windchill PLM as source system to the other system, the criteria must be configured. Refer to Criteria Configuration section on Integration Configuration page for details.

Note: OpsHub Integration Manager uses Windchill PLM's native query format to filter items.

Understanding Query Syntax

Queries in Windchill PLM follow this pattern:

FieldName operator Value

Example: To find an issue with a specific ID:

ID eq OR:wt.change2.WTChangeIssue:0000001

Here:

• ID is the field name

• eq means "equals"

• OR:wt.change2.WTChangeIssue:0000001 is the value to match

Sample Queries

What You Want to Find	Query to Use	What it Achieves
Issues with State open	State/Value eq 'OPEN'	Returns Issues where the State field equals OPEN
Issues created after a date and has certain priority	IssuePriority/Value eq 'HIGH' and CreatedOn gt 2024-01-01T00:00:00Z	Returns Issues where priority is High and created after 2024-01-01

For more information about query options, Refer to Windchill PLM's Query Parameters documentation.

Note:

• Navigable properties only: User can only filter on fields that Windchill PLM considers "navigable".

  • Filters on non-navigable properties will either fail or be ignored.

• Check Windchill PLM's documentation on navigational properties for more details.

Target Lookup Configuration

• Provide Query in Target Search Query field such that it is possible to search the entity in the Windchill PLM as the target system. In the target search query field, the user can provide a placeholder for the source system's field value in the '@'.

• To learn in detail about how to configure Target LookUp, refer to Search in Target Before Sync section on Integration Configuration page.

• Overall, Target LookUp Query is similar to Criteria configuration, except that the value part contains a field name with '@' instead of static value.

How it Works:

Provide a query that the integration will use to search the matching items in Windchill PLM. If a match is found, the existing item is updated instead of creating a new one.

Using Placeholders:

The user can use field values from the source system in the search query by wrapping field names in @ symbols.

Example:

comUpstreamItem eq @ID@

Here:

• comTestUpstreamItem is the Windchill PLM field to search.

• @ID@ will be replaced with the actual ID value from the source system.

• The integration will look for a Windchill PLM item where comTestUpstreamItem matches the source ID.

---

Known Behaviors and Limitations

• History-based synchronization is currently not supported. Each synchronization run captures the latest version of an item available at that time.

• Only those attachments will be synchronized which are uploaded to the items using the Attach new local file option.

• Comments and discussions' synchronization is not supported.

• Relationship/Link information can be read and synchronized, but new relationships/links cannot be created or modified through the integration.

• Any new items created by the integration are placed in the base folder of the product container.

  • Once the item is created in base folder, they cannot be moved to a different folder through integration.

• Currently, fields that appear in an Item's Details tab will be synchronized.

• Windchill PLM does not always indicate whether a field supports multiple values. The user can define the correct behavior for such fields in the Metadata Details JSON.

• Some fields may appear read-only in the mapping interface. However, if the Windchill PLM's API allows updates (for example, the Status field), you can override this behavior in the Metadata Details JSON configuration.

• The Metadata Details JSON cannot introduce new entity types to Windchill PLM. It can only modify or add fields to existing entity types, along with relationships.

  • Currently, the user can only configure Issue entity and its fields/relationships through Metadata Details JSON.

• Product names containing a single quote (') are not supported.

  • Reason: Windchill PLM's API does not handle single quotes in product names correctly, leading to the errors during synchronization.

---

Appendix

Get Internal Field Names for Windchill PLM Entities

To determine the exact internal names of Entity and Fields for your Windchill PLM instance:

1. Use the GetWindchillMetaInfo() API call to retrieve field values and metadata. For more details, refer to the API documentation. You can also execute this API call using any standard API client tool. Example: Postman, Curl.

2. Look for the following values in the API response:

   • EntityType → use as entities[].internalName

   • PropertyName → use as fields.system[].internalName

• Example: Below is the response for making the API call for issue entity:

{
  "EntityType": "PTC.ChangeMgmt.Issue",
  "BaseType": "PTC.ChangeMgmt.ProblemReport",
  "DisplayName": "Issue",
  "InternalName": "com.Test.Issue",
  .
  .
  .
  "PropertyInfo": [
    {
      "PropertyName": "State",
      "DisplayName": "State",
      "InternalName": "state.state",
      "DataType": "PTC.EnumType",
      "ReadOnly": true,
      .
      .
      .
    }
  ]
}

• The following mappings can be determined:

  • entities[].internalName will be PTC.ChangeMgmt.Issue

  • fields.system[].internalName will be State
