Redmine
Prerequisites
User Privileges
Create one Redmine user dedicated to OpsHub Integration Manager. User should not do any operations from system's user interface.
The user created for synchronization should have access to the project that will be configured for synchronization. This user should have both administrator rights as a user and reporter rights at the project level. For detailed information on how to add a user, refer to the Add User section. For further details on how to assign users to the projects, refer to the Assigning User to Projects section.
Enable REST API service for Redmine, if it is not already enabled. For further details, refer to the Redmine Configuration section.
End System Storage Criteria
To configure the End System Storage Criteria with the Custom Field in OpsHub Integration Manager, the "Used as a filter" option needs to be enabled for this selected Custom Field. For more details, refer to Custom Field Configuration.
Redmine Database Information
Given below are the configuration parameters for the Redmine database to create an integration configuration.
Redmine Database Type
Redmine Database Host
Redmine Database Port
Redmine Database Name
Redmine Database Username
Redmine Database Password
System Configuration

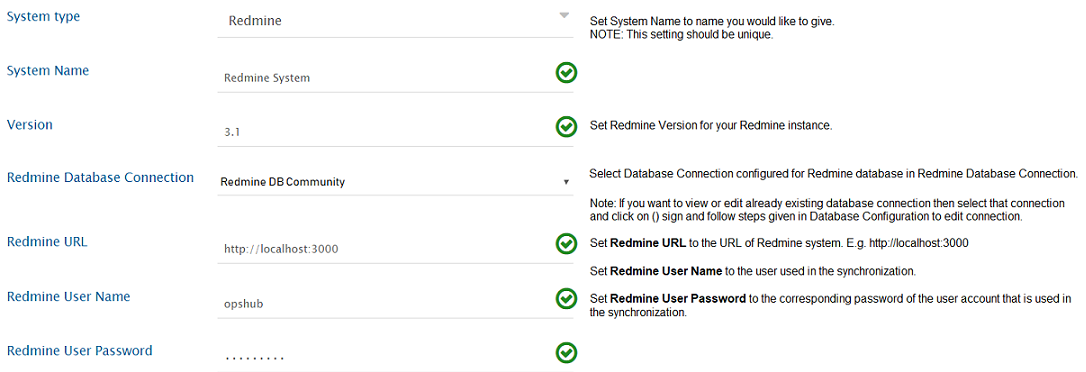

Before you continue to the integration, you must first configure Redmine. Click System Configuration to learn the step-by-step process to configure a system. Refer the screenshot given below for reference.
Redmine System form details
Field Name
When field is visible on the System form
Description
System Name
Always
Provide system name
Version
Always
Provide version like 3.1.2, 3.4.5. To know your version, refer to How to find Redmine's version section.
Redmine Database Connection
Always
Select an already created Database connection or if the Database connection is not configured for Redmine, then click the + sign and follow steps given on the Database Configuration page to create database connection.
Redmine URL
Always
Format: [http/https]://[RedmineServerHost]/[RedmineServerPort]
Redmine User Name
Always
Provide the username of the Redmine user created for OpsHub Integration Manager. Please refer to User Privileges for more details.
Redmine User Password
Always
Provide Redmine Users password
If the system is deployed on HTTPS and a self-signed certificate is used, then you will have to import the SSL Certificate to be able to access the system from OpsHub Integration Manager Click Import SSL Certificates to learn how to import SSL certificate.
Mapping Configuration
Map the fields between Redmine and the other system to be integrated to ensure that the data between both the systems synchronizes correctly. Click Mapping Configuration to learn the step-by-step process to configure mapping between the systems.
Integration Configuration
In this step, set a time to synchronize data between ServiceNow and the other system to be integrated. Also, define parameters and conditions, if any, for integration. Click Integration Configuration to learn the step-by-step process to configure integration between two systems. Refer Custom Field section in appendix to learn how to create custom fields.
Criteria Configuration
If you want to specify conditions for synchronizing an entity between Redmine and the other system to be integrated, you can use the Criteria Configuration feature.
Go to Criteria Configuration section on Integration Configuration page for further details.
To configure criteria in Redmine, integration needs to be created with Redmine as the source system. OpsHub Integration Manager supports criteria on native queries which are supported by Redmine Rest API. The format of criteria query is [Internal Name] = [Value of Id for desired property]
Some of the properties on which OpsHub Integration Manager support queries are as follows:
Tracker
Status
Assigned To
Priority
Custom Fields
The relative ids for the properties are given in the table below:
Property Name
Internal Name
Description
Tracker
tracker_id
To know more about trackers_id, refer to https://www.redmine.org/projects/redmine/wiki/Rest_Trackers
Status
status_id
To know more about status_id, refer to https://www.redmine.org/projects/redmine/wiki/Rest_IssueStatuses
Assigned To
assigned_to_id
To know more about users_id, refer to https://www.redmine.org/projects/redmine/wiki/Rest_Users)
Priority
priotity_id
To know more about proirity_id, refer to https://www.redmine.org/projects/redmine/wiki/Rest_Enumerations)
Custom Fields
cf_x
To know more about custom_fields_id, refer to https://www.redmine.org/projects/redmine/wiki/Rest_CustomFields)
Sample Query
Polling all the issues with status 'Closed'.
Let the id of status closed under issue_statuses table be 3. So, query formed will be: 'status_id=3'
Polling the issues with custom description having value 'hello'.
Let the id of custom description field be 3. So, query formed will be: 'cf_3=hello'.
Polling the issues with more than one criteria: For example, poll the issues having status as 'Closed' and custom description as 'hello'. For more details about criteria query with more than one parameters, refer to https://www.redmine.org/projects/redmine/wiki/Rest_Issues.
The query formed will be 'cf_3=hello&status_id=3'.
Target Lookup Configuration
Provide Query in Target Search Query field so that it is possible to search the entity in Redmine when it is the target system. Go to Search in Target Before Sync section on Integration Configuration page to learn in detail about how to configure Target Lookup. Target LookUp configuration is similar to the Criteria Configuration where in the target search query field, you can provide a placeholder for the source system’s field value in-between ‘@’.
The internal names of the properties are listed in the table below, and can be used in the Target Lookup query:
Property Name
Internal Name
Description
Tracker
tracker_id
To know more about trackers_id please refer to https://www.redmine.org/projects/redmine/wiki/Rest_Trackers.
Status
status_id
To know more about status_id please refer to https://www.redmine.org/projects/redmine/wiki/Rest_IssueStatuses
Assigned To
assigned_to_id
To know more about users_id please refer to https://www.redmine.org/projects/redmine/wiki/Rest_Users
Priority
priotity_id
To know more about proirity_id please refer to https://www.redmine.org/projects/redmine/wiki/Rest_Enumerations
Custom Fields
cf_x
To know more about custom_fields_id, please refer to https://www.redmine.org/projects/redmine/wiki/Rest_CustomFields
Sample Queries
Target Lookup Query for a constraint on a single field:
(subject=@Title@)Description: It represents a query that will select only entities that have the same "subject" field value as the source system's "title" field value.Target Lookup Query for constraints on multiple fields:
(status_id=@State@&subject=@Title@)Description: It represents a query that selects only entities whose "status" field value matches the source system's "state" field value and whose "subject" field value matches the source system's "title" field value.
Known Behaviour
Comments Synchronization:
On enabling comments synchronization, Notes in the Redmine will be synchronized as comments at the other end point.
Issues Synchronization:
Currently OpsHub Integration Manager supports synchronization of the trackers under the issues type.
SubTask Synchronization:
To synchronize subtasks, relationship should be configured in mapping configuration with link type as ParentChild.
Version type Field:
For Version Type field , in case of multi-project sync, the values need to be same across all the projects in the Redmine, which are the part of the sync.
For the above field sync, the project needs to be selected at the mapping level.
Reason: Redmine API requires the project input to fetch the values of Version type field.
However, the fields shown at mapping level will not be project[selected at mapping level] specific. The fields for all the projects will be visible at mapping level.
Reason: Redmine API does not provide a way to fetch the fields project-wise.
Known Limitations
Synchronization of issues that have change only in the related issues(relation link) for any entity will not sync to the target system:
Reason: When the related issues are changed in an entity(either a related issue is added or removed), in that case Redmine does not update the updated time of the entity.
Solution: To synchronize such related issues changes, an additional update is needed to any system or custom field of Redmine.
Synchronization of the inline images:
Inline images are synchronized to the target system depending on whether the target system supports them or not.
The inline image may not synchronize properly in the below mentioned use case:
Referencing of the inline images with attachment is case insensitive in Redmine. For example, if the attachment name is Capture.PNG and the attachment refered as inline image is written as !Capture.png!, Redmine will still refer to 'Capture.PNG' attachment. The other end point system may not refer to the attachment if their is any mismatch in case of inline image and attachment.
Issues' Synchronization:
OpsHub Integration Manager does not provide support for field type coming from plugin(s) as of now.
At least one issue of any type must be created in the Redmine instance before performing mapping configuration in the OpsHub Integration Manager.
Appendix
Add User
Log in to Redmine as a user with Administrator rights.
Click on Administration.

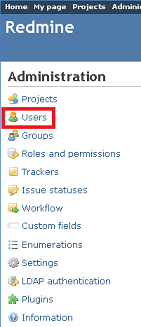

Select Users.
Click the + sign to add a new user.
Enter Login, First Name, Last Name, E-mail, and Password.
Check the Administrator box.
Click the Create button.
Assigning User to Projects
Log in to Redmine as a user with Administrator rights.
Click Administration.
Select Projects.
Click the project to which the user is to be assigned.

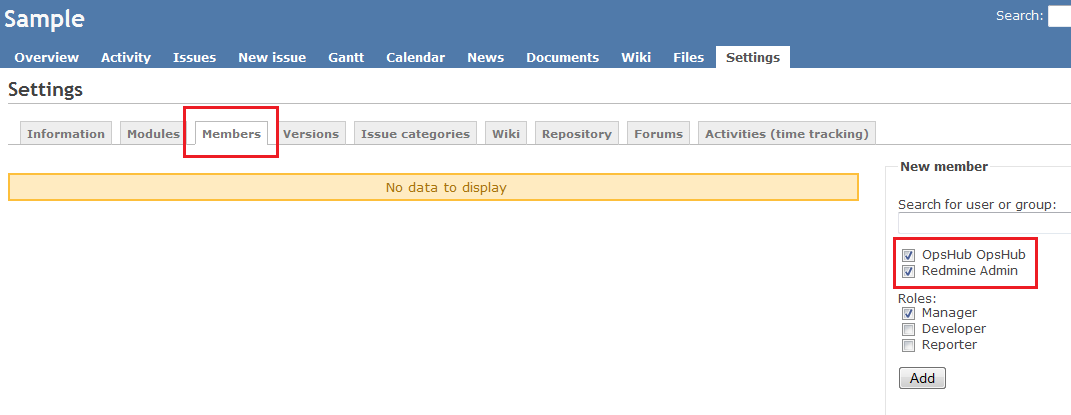

Click Members.
Select the user to be assigned, along with the Role.
Click Add button.
Custom Field Configuration
OpsHub Integration Manager needs a few special fields to be defined on the entity that is being synchronized. These must be set up so that OpsHub Integration Manager can track the integration status of each item.
Log in to Redmine as a user with Administrator rights.

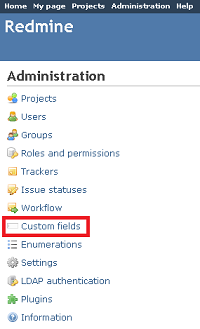

Click Custom fields.

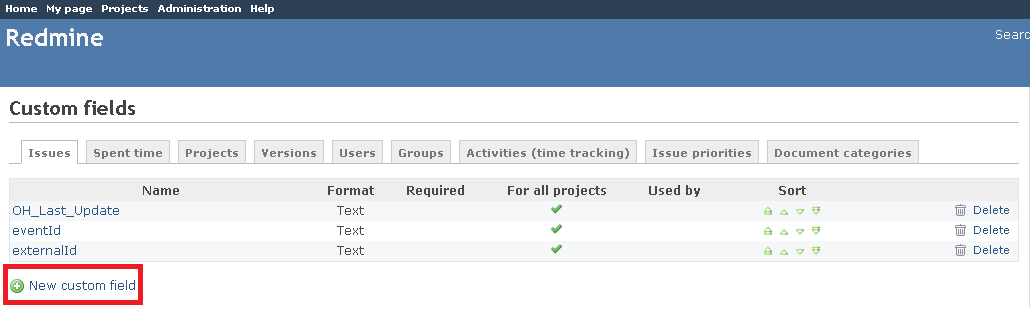

Click the + Sign to add a new custom field.

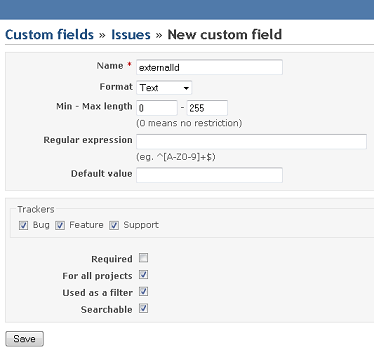

Enter custom field name.
Select format Text.
Set Maximum length to 255.
Attach it to the all Tracker types.
Check the options for For all Projects, Used as a Filter, Searchable.
Click Save button.
Find Version
Log in to Redmine as a user with Administrator rights.
Go to Administration > Information.
Click Information. It will display the Redmine version.
Redmine Configuration
By default, Enable Rest API option is disabled in Redmine. Given below are the steps to enable REST API option:
Log in to Redmine as a user with Administrator rights.

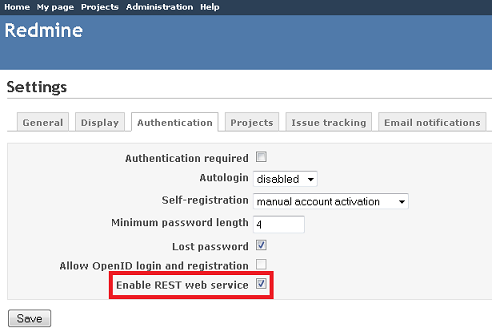

Go to Settings > Authentication tab.
Under Authentication tab, check mark the option of Enable REST web service if it is not checked.
Press OK button.
