Helix ALM
Pre-requisites
User privileges

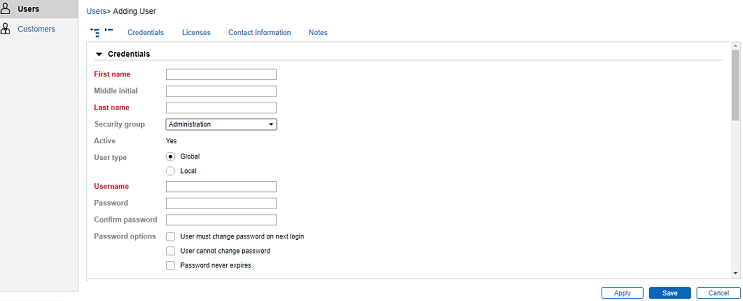

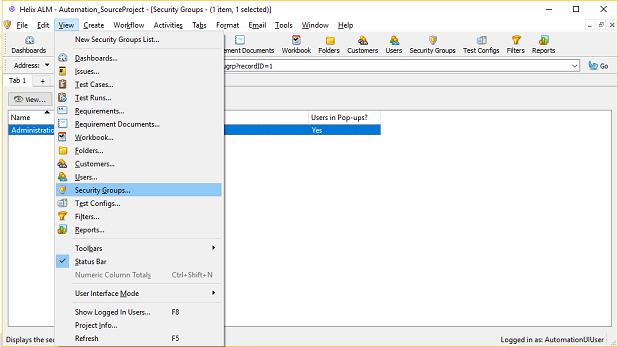

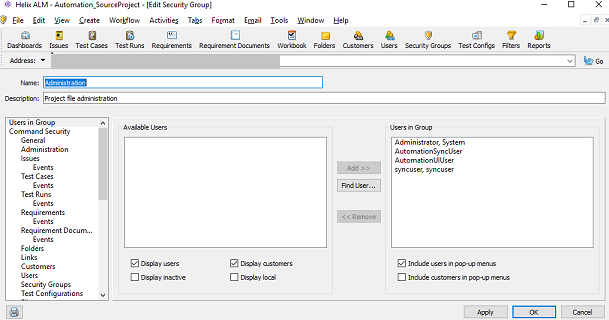

Create one user for Helix ALM System, dedicated to OpsHub Integration Manager. User should not be used to do any operations from system's user interface.
User should not be used to create or update any entities from Helix ALM user interface. For help on how to add user, please refer Add User in appendix. For help on how to assign user to groups, please refer Assign User Privileges in the appendix.
Custom field
One special field is required on the entity that is being synchronized to Helix ALM. This must be set up so that the integration status of each item can be tracked:
Property Name
Type
Size
OH_Last_Update
String
255

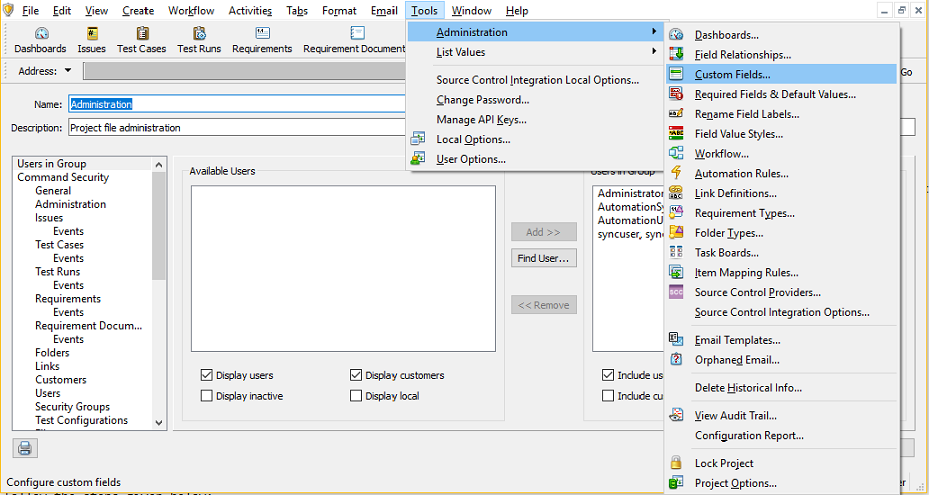

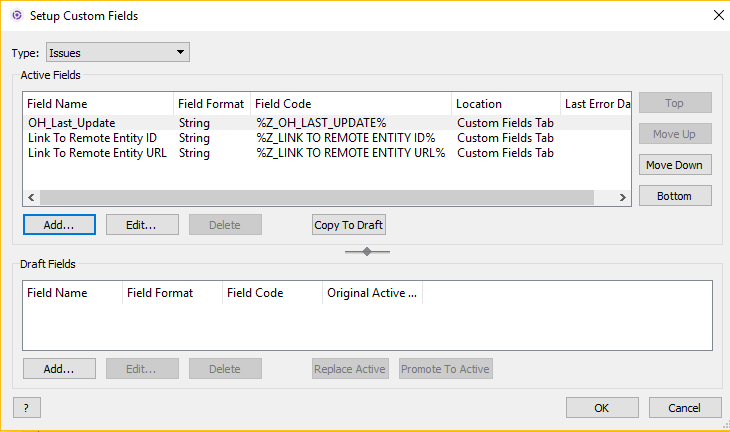

For more details on adding custom fields, refer Custom fields in appendix section.
Other prerequisites
Helix ALM SOAP CGI and Helix ALM REST API Server must be installed to communicate with Helix ALM Server. Refer to Installing Helix ALM SOAP CGI and Installing Helix ALM Rest API Server for more details.
System Configuration
Before you continue to the integration, you must first configure Helix ALM. Click System Configuration to learn the step-by-step process to configure a system. Refer the screenshot given below for reference.

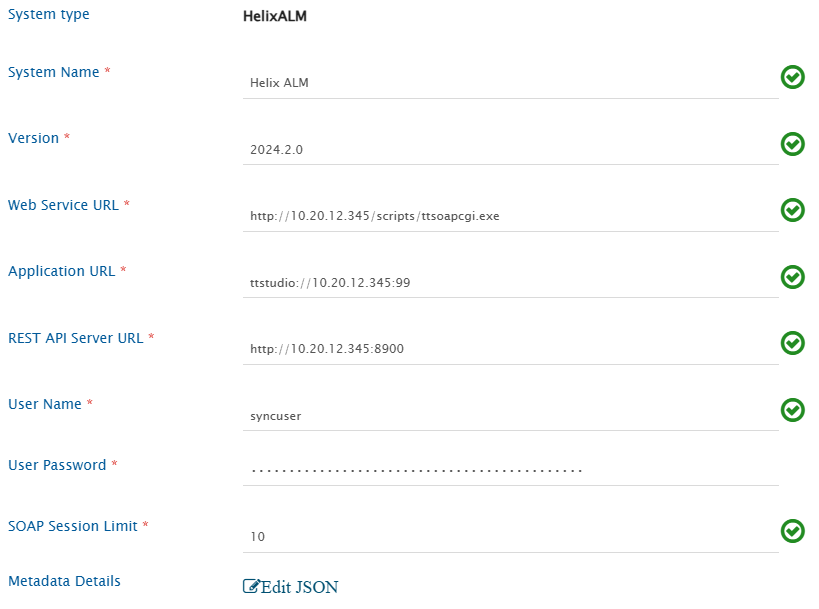

Helix ALM system form details
Field Name
When field is visible on the System form
Description
System Name
Always
Set System Name to Helix ALM or any other name you want. This name will appear throughout the application Note: System Name should be unique
Version
Always

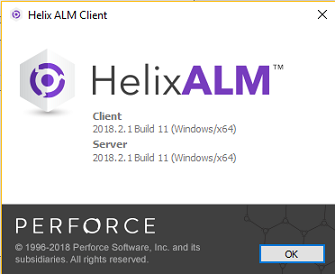

Provide the supported version of Helix ALM System.
Web Service URL
Always
Provide the Helix ALM Server Web Service URL. This URL is used for connecting to Helix ALM SOAP API. Format for URL: http://:/scripts/ttsoapcgi.exe.
Application URL
Always
Provide the Application Web URL, this URL is being used in constructing link to remote entity, hence keep this as per the Helix ALM client. e.g. ttstudio://:
REST API Server URL
Always
Provide the Helix ALM REST API Server URL. This URL is used to connect to Helix ALM REST API Server.
User Name
Always
Provide username that will be used for synchronization.
User Password
Always
Provide the user password.
SOAP Session Limit
Always
Provide the number of concurrent logins possible for the Helix ALM Server through the SOAP API. Refer to Find SOAP Session Limit for more details.
Metadata Details
Always
Provide the details regarding system/custom fields of the Workflow events. Refer to Understanding JSON Input for more information.
If the system is deployed on HTTPS and a self-signed certificate is used, you will have to import the SSL Certificate to be able to access the system from OpsHub Integration Manager. Click Import SSL Certificate to learn how to import SSL certificate. For checking the version of your Helix ALM instance, refer Find Version in appendix.
Understanding JSON Input
If the user wants to read some fields that are not available by default, then the user can provide those fields information in the form of JSON.
Refer the following example:
{
"entities": [
{
"displayName": "Issue",
"internalName": "Issue",
"fields": {
"custom": [],
"system": [
{
"displayName": "Is Marked As Suspect",
"internalName": "Is Marked As Suspect",
"dataType": "boolean",
"readOnly": true,
"historyEnabled": false
}
]
}
}
],
"projects": []
}Refer to Understanding Json Metadata Input section for more details on the JSON input.
When Helix ALM is the target system and Resulting State field needs to be synchronized, JSON input must be provided.
For each entity, the system/custom fields information of Workflow events must be provided in the JSON input.
For each field (except OH_State_Event), the outputType of the field must be provided in the systemSpecific input.
Refer the following table for the outputType of different field types.
Field Type
Output Type
Check Box
boolean
Date
date
Date (Including time)
dateTime
Decimal
decimal
Dropdown
menuItem
Dropdown (Multiple values)
menuItemArray
Hyperlink
string
Integer
integer
Multi-line text
formattedString
String
string
Users Dropdown
user
Users Dropdown (Multiple values)
userArray
Following fields are mandatory in the JSON input for Resulting State field synchronization:
Resulting State
It should be a lookup type of system field.
The lookupValues should be such that both the key and value are the name of the resulting states.
OH_State_Event
It should be a lookup type of custom field.
It should be a read-only field.
The lookupValues should be such that the key is the name of the state and value is the name of the event.
Refer the following example of JSON input for the Issue entity:
{
"entities": [
{
"displayName": "Issue",
"internalName": "Issue",
"fields": {
"custom": [
{
"displayName": "Resolution",
"internalName": "Resolution",
"dataType": "lookup",
"mandatory": false,
"historyEnabled": false,
"lookUpValues": {
"Clarification": "Clarification",
"Code Change": "Code Change",
"Documentation Change": "Documentation Change",
"Not a Bug": "Not a Bug",
"Not Our Bug": "Not Our Bug"
},
"systemSpecific": {
"outputType": "menuItem"
}
},
{
"displayName": "OH_State_Event",
"internalName": "OH_State_Event",
"dataType": "lookup",
"readOnly": true,
"mandatory": false,
"historyEnabled": false,
"lookUpValues": {
"Closed": "Force Close",
"Closed (Fixed)": "Fix",
"Closed (Verified)": "Verify",
"Fixed": "Fix",
"Open (Re-Opened)": "Re-Open",
"Open (Verify Failed)": "Verify"
}
}
],
"system": [
{
"displayName": "Resulting State",
"internalName": "Resulting State",
"dataType": "lookup",
"mandatory": false,
"historyEnabled": false,
"lookUpValues": {
"Closed": "Closed",
"Closed (Fixed)": "Closed (Fixed)",
"Closed (Verified)": "Closed (Verified)",
"Fixed": "Fixed",
"Open": "Open",
"Open (Re-Opened)": "Open (Re-Opened)",
"Open (Verify Failed)": "Open (Verify Failed)"
},
"systemSpecific": {
"outputType": "menuItem"
}
},
{
"displayName": "Notes",
"internalName": "Notes",
"dataType": "text",
"mandatory": false,
"historyEnabled": false,
"systemSpecific": {
"outputType": "string"
}
}
]
}
}
],
"projects": []
}Refer to Workflow Transition Configuration section for details on configuring different transitions for the Resulting State field.
Mapping Configuration
Map the fields between Helix ALM and the other system to be integrated to ensure that the data between both the systems synchronizes correctly. Click Mapping-configuration to learn the step-by-step process to configure mapping between the systems.
Click Mapping Checkpoints to learn about mapping checkpoints for Helix ALM as a target system.
Get Requirement Document Id's for Requirement
In Helix ALM, a single Requirement can be added to multiple Requirement Documents.
To fetch the record id's of all such Requirement Documents, the Get field Value of Entity utility can be used. In this utility method, the Related Requirement Documents will be used as field name.
This utility will return all the Requirement Documents record id's separated by a comma.
For example, if a Requirement is added to multiple Requirement Documents having record id's 1, 2, and 3, the utility will return "1,2,3".
Given below is a sample advance XSL for getting the Requirement Documents record id's:
<xsl:variable name="projectKey" select="SourceXML/opshubProjectKey"/>
<xsl:variable name="entityId" select="SourceXML/opshubEntityId"/>
<xsl:value-of select="utils:getEntityFieldValue($workflowId,$sourceSystemId,$projectKey,$entityId,'Related Requirement Documents')"/>Set a time to synchronize data between Helix ALM and the other system to be integrated. Also, define parameters and conditions, if any, for integration.
Click Integration Configuration to learn the step-by-step process to configure integration between two systems.
Criteria Configuration
If you want to specify conditions for synchronizing an entity between Helix ALM and the other system to be integrated, use the Criteria Configuration feature. Go to the Criteria Configuration section on the Integration Configuration page for details.
To configure criteria in Helix ALM, integration needs to be created with Helix ALM as the source system.
Refer to the following table for some sample criteria queries:
Field Type
Criteria Description
Criteria snippet
Lookup
Synchronize all entities having a certain value in Lookup
'Priority' = 'High'
Date
Synchronize all entities created after a certain date
'Date Created' >= '2025-01-01'
Text
Synchronize all entities containing 'UI' in Summary field
Summary CONTAINS 'UI'
User
Synchronize all entities created by the 'SupportUser'. Use ' ' format.
'Created By' = 'OpsHub Support User'
Lookup or Text
Synchronize all entities with Priority = 'High' and 'UI' in Summary
'Priority' = 'High' and 'Summary' CONTAINS 'UI'
Refer to Helix REST API Documentation to check different criteria queries available.
Known Behavior
If Helix ALM is the target system:
Inline image synchronization is not supported. Reason: Helix ALM API limitation.
Speed of synchronization will be affected in the following scenarios:
The integration user is associated with a named license.
The integration user is associated with a floating license, but the number of projects configured for integration exceeds the SOAP Session Limit provided in the system configuration form. Reason for above-mentioned scenarios: To execute a SOAP API, OpsHub Integration Manager needs to first log into the project. Every login consumes a license. If more projects are configured, login and logout operations will be performed repeatedly, causing slowness in synchronization.
Attachment Synchronization
For Helix ALM Issue entity, there can be multiple reports available [under Detail tab] and each of this report can have multiple attachments.
While synchronizing attachments from Helix ALM, all the attachments from all these reports will be synchronized to the target system.
While synchronizing attachments to Helix ALM, all the attachments added in to other end system will be synchronized to the 1st report.
The examples given below will help you understand the attachment synchronization behavior with bidirectional synchronization.
Let's assume that we have a bidirectional integration configured between Helix ALM 'Issue' and VersionOne 'Defect' with attachment synchronization enabled in mapping configuration.
If Issue 1 has 2 reports and each of them has 1 attachment [let's assume : R1 is attachment for Report 1 and R2 is attachment for Report2], in VersionOne Defect, 2 attachments [R1,R2] will be visible
Now if we add 1 attachment [V1] to VersionOne Defect, the attachment will be synchronized to the 1st Report (so Report 1 will have 2 attachments [R1,V1] and Report 2 will have 1 attachment [R2]) Report 2 attachments will be untouched and won't be added back to Report 1.
If we edit the attachment R1 in VersionOne Defect, the attachment will get deleted and, instead, add an attachment R1 on the 1st report. But if we edit the attachment R2 in VersionOne, it will be added to Report 1 and the attachment for Report 2 will be as it is (This is because of a known limitation)
Relationship Synchronization
Given below are the expected behaviors while writing links to Helix ALM:
Links created by OpsHub Integration Manager will have only two entities participating in it. Suppose three issues "issue1", "issue2", and "issue3" are linked by "Related Items" in some source system. These links will be synced to Helix ALM as two different links for all of them. So, for the above case, it will be three different links "issue1" related to "issue2", "issue2" related to "issue3" and "issue3" related to "issue1".
Link won't be added if link type "Require Comment" is enabled for link type.
Following are expected behaviors while reading links from Helix ALM:
If there are two links having same parent and same set of children, OpsHub Integration Manager will consider only one link.
If there are more than 2 items participating in any link, it will be split in more than one link.
Suppose Requirement "req1" is related to 2 test cases "test1" and "test2" through "Requirement Tested By" type of link (it is one link with single parent and two children). In this case, two links will be synced by OpsHub Integration Manager, one with each child "test1" and "test2".
Workflow Transition Configuration
When Helix ALM is the target system and user wants to synchronize Resulting State field, the Workflow Transition must be configured to transition from one state to another.
In Helix ALM, each Workflow event can have multiple fields. Some can be mandatory also.
To synchronize such fields, the user needs to provide them as dependent fields in the Workflow Transition XML.
Refer to the following sample Workflow Transition XML for the Resulting State field:
<FieldTransitions>
<FieldTransition>
<transitionName>transitionName 1</transitionName>
<fromField>Resulting State</fromField>
<toField>Resulting State</toField>
<sourceValue/>
<targetValue>Open</targetValue>
<defaultTransition>true</defaultTransition>
</FieldTransition>
<FieldTransition>
<transitionName>transitionName 2</transitionName>
<fromField>Resulting State</fromField>
<toField>Resulting State</toField>
<sourceValue>Open</sourceValue>
<targetValue>Fixed</targetValue>
<dependentFields>
<dependentField>
<fieldName>Resolution</fieldName>
<defaultValue>Code Change</defaultValue>
</dependentField>
<dependentField>
<fieldName>Notes</fieldName>
<defaultValue>State changed from Open to Fixed</defaultValue>
</dependentField>
</dependentFields>
</FieldTransition>
<FieldTransition>
<transitionName>transitionName 3</transitionName>
<fromField>Resulting State</fromField>
<toField>Resulting State</toField>
<sourceValue>Open</sourceValue>
<targetValue>Closed (Fixed)</targetValue>
<dependentFields>
<dependentField>
<fieldName>Resolution</fieldName>
<defaultValue>Documentation Change</defaultValue>
</dependentField>
<dependentField>
<fieldName>Notes</fieldName>
<defaultValue>State changed from Open to Closed (Fixed)</defaultValue>
</dependentField>
</dependentFields>
</FieldTransition>
<FieldTransition>
<transitionName>transitionName 4</transitionName>
<fromField>Resulting State</fromField>
<toField>Resulting State</toField>
<sourceValue>Open</sourceValue>
<targetValue>Closed</targetValue>
<dependentFields>
<dependentField>
<fieldName>Resolution</fieldName>
<defaultValue>Clarification</defaultValue>
</dependentField>
<dependentField>
<fieldName>Notes</fieldName>
<defaultValue>State changed from Open to Closed</defaultValue>
</dependentField>
</dependentFields>
</FieldTransition>
<FieldTransition>
<transitionName>transitionName 5</transitionName>
<fromField>Resulting State</fromField>
<toField>Resulting State</toField>
<sourceValue>Fixed</sourceValue>
<targetValue>Closed</targetValue>
<dependentFields>
<dependentField>
<fieldName>Resolution</fieldName>
<defaultValue>Not Our Bug</defaultValue>
</dependentField>
<dependentField>
<fieldName>Notes</fieldName>
<defaultValue>State changed from Fixed to Closed</defaultValue>
</dependentField>
</dependentFields>
</FieldTransition>
</FieldTransitions>Administrative Configurations
Recommended link configurations in Helix ALM:
Set "Limit number of items to": to 2, so that more than one entity is not participating in link.
Keep "Require Comment" option disabled.
Avoid circular linking of issue for parent/child type of links. It will create ambiguity in the target systems, as this feature is not supported in most of the other systems.
Don't change the project name once integrations are configured.
Known Limitations
OpsHub Integration Manager does not support synchronization of Test Config field present under Detail tab in the Issue entity.
Synchronization of only Comment Workflow event is supported.
For Issue entity, the field label of all the Found By Records field should not be changed. It should be set to the default value.
Found By Record fields supported by OpsHub Integration Manager are Description, Steps to Reproduce, Other Hardware and Software, Version Found, Found By, Date Found, Reproduced.
If the label of the field is changed in the end system, the mapping needs to be updated in the OpsHub Integration Manager.
If Requirement entity is configured for synchronization and Relationships synchronization is enabled:
There should not be a custom link type in Helix ALM having same name as either "Requirement Relationships(Parent)" or "Requirement Relationships(Child)".
If Helix ALM is the source system:
For the Issue entity, there can be multiple reports available [under the Detail tab], and each of these reports can have multiple fields with multiple inline images.
All the fields of the first record only will be synchronized.
The inline image synchronization for all the fields of the first report is only supported.
If Helix ALM is the target system:
Synchronization of "Requirement Relationships(Parent)" and "Requirement Relationships(Child)" links is not supported.
Synchronization of different fields of the first Found By Record of Issue entity is supported.
Appendix
Add User
For adding a new user, follow the steps given below:
Log in to Helix ALM as a user with 'Administration' security group.
Choose Create > Users. The Add User form will show.
Enter the Username, First Name and Password.
Select Security Groups Administration.
Click the Add button.
Giving User Privileges
For giving privileges, follow the steps given below:
Log in to Helix ALM as a user with Administration security group.
Choose View > Security Groups. The security groups listing will show.
Select the appropriate Security Group from the list in which to add the user. And click Edit, this will display the Edit Security Groups screen.
From the left panel, select Users in Groups.
From the right panel in Available Users section, select the user(s) that needs to be added to the current security group. Click the Add button.
Click the OK button.
Custom fields
OpsHub Integration Manager requires a few special fields to be defined on the entity that is being synchronized. These must be set up so that the integration status of each item can be tracked.
Log in to Helix ALM as a user with Administration security group.
Choose Tools > Administration > Custom Fields. The Setup Custom Fields dialog box opens.
Select the entity type in Type dropdown list (In this case, we will select Issues).
Click the Add button link, and click the Add Custom field link on the presented page. The Add Custom field screen will display.
Fill in the Field name, Long label and Field code.
Select the appropriate Field type field the list.
Click the OK button.
Find version
For getting Helix ALM version, follow the steps given below:
Log in to the Helix ALM project using Helix ALM client.
Go to Help menu and in that click About Helix ALM Client menu item. The Helix ALM Client, dialog will display.
Given here is the version for the Helix ALM server.
Find SOAP Session Limit
Log in to License Server Admin Utility as a user with Administration security group.
Click the Licenses button.
For the active license:
if you have a X-user floating evaluation license, provide the SOAP Session Limit as X.
If you have a X-user named license, provide the SOAP Session Limit as 1.
Last updated
